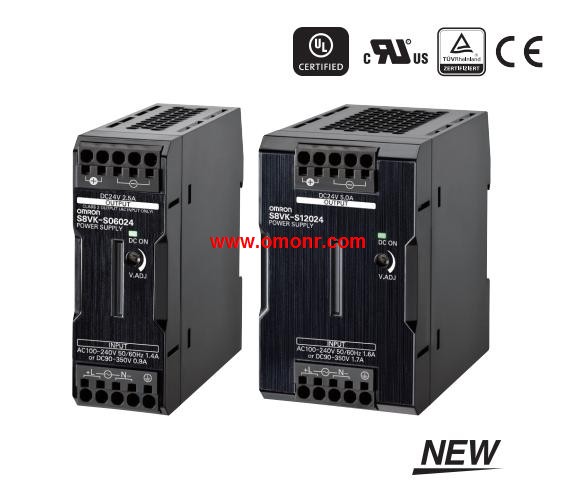

S8VK-S12024 Switch Mode Power Supply
OMRON S8VK-S12024 Manual And Instructions
S8VK-S12024 datasheetPDF datasheet
S8VK-S12024 datasheetPDF datasheet
S8VK-S12024 EtherCAT(R) Connection Guide
OMRON S8VK-S12024 Product information and technical parameters：
Brand: OMRON
Name: Switch Mode Power Supply
Model: S8VK-S12024
Power ratings: 120 W.
Rated input voltage: 100 to 240 VAC .
(allowable range: 85 to 264 VAC or 90 to 350 VDC).
Rated output voltage: 24 V.
Rated output current: 5 A.
Maximum boost current: 6 A.
A Perfect Fit for Small Control Panels.
Coated PCBs for Better Resistance to Environment.
Connections for Easy Wiring.
Operation possible at ambient temperatures from -40 to 70°C.
DC input supported (90 to 350 VDC).
Power Boost function at 120%.
Horizontal side-by-side mounting.
Vibration resistance to 5G, and 300-VAC abnormal,
input voltage supported for 1 second.
Complies with EN/IEC 61558-2-16.
UL 508 Listing/UL 1310 Class 2 output standards *1,
ANSl/ISA 12.12.01.
Certification for 3,000 m altitude,
(UL/EN/IEC 60950-1 and EN 50178).
Lloyd’s, DNV GL *2.
Conforms to F47-0706.
Five years Warranty *3.
