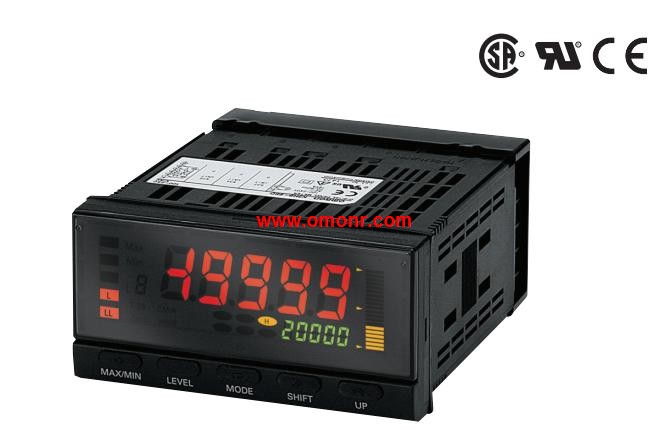

K3HB-XVD-L1AT11 AC/DC24 Voltage and current panel meter
OMRON K3HB-XVD-L1AT11 AC/DC24 Manual And Instructions
K3HB-XVD-L1AT11 AC/DC24 datasheetPDF datasheet
OMRON K3HB-XVD-L1AT11 AC/DC24 Product information and technical parameters：
Brand: OMRON
Name: Voltage and current panel meter
Model: K3HB-XVD-L1AT11 AC/DC24
Input type: DC voltage input type.
Output type: linear; current; NPN open collector (HH, H, PASS, L, LL).
Event input terminal 5 points (TIMING, S-TIM, HOLD, RESET, ZERO) is equipped with.
External supply 80mA DC12V.
Power supply voltage: AC/DC24V.
96 (W) * 48 (H * 95mm) depth
Some models are not equipped with.
The most suitable voltage and current signal simulation, measurement and display, identification of the panel table.
Action determine the color, can switch the green / Red 2 kinds of color display.
Equipped with the sub pressure gauge for monitoring the operation trend.
External event input can be applied to a variety of measurement and identification situations.
DeviceNet type
