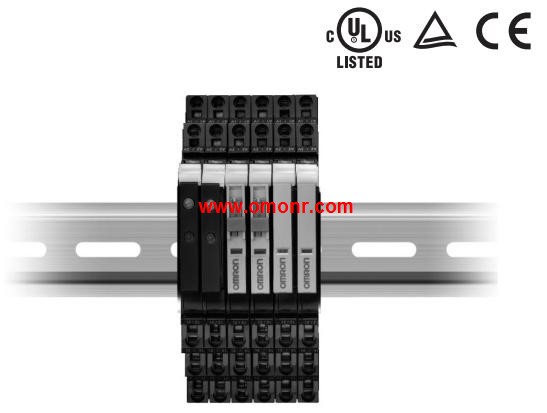

G3RV-SR500-D AC110 Slim I/O Relay
OMRON G3RV-SR500-D AC110 Manual And Instructions
G3RV-SR500-D AC110 datasheetPDF datasheet
G3RV-SR500-D AC110 datasheetPDF datasheet
G3RV-SR500-D AC110 datasheetPDF datasheet
OMRON G3RV-SR500-D AC110 Product information and technical parameters：
Brand: OMRON
Name: Slim I/O Relay
Model: G3RV-SR500-D AC110
Terminal (wire connection): Push-In Plus Terminal.
Applicable output load: DC load.
Zero cross function: --.
Rated input voltage: AC 110V.
Global standard size,
low profile slim I/O relay with width 6.2 mm,
slim I/O solid state relay.
Realized about 25% lower profile than conventional,
products, contributing to further miniaturization of the,
control panel.
Push-In Plus terminal blocks are used to save wiring work,
in comparison with conventional screw terminals.
(Wiring time is reduced by 60%* in comparison with,
traditional screw terminals.).
No screw loosening means maintenance-free application,
realizing high reliability.
Hand-free structure that holds an inserted flat-blade,
screwdriver to achieve easier wiring work for stranded wires.
Screw terminal is also stocked to meet the screw type needs.
Mounted relay or solid-state relay has a plug-in terminal.
that is difficult to bend at the time of exchange.
