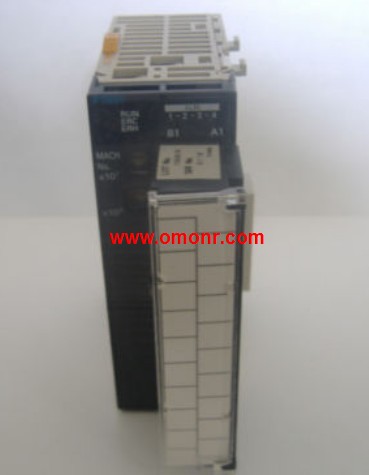

CJ1W-PTS51 Process Analog I/O Unit
OMRON CJ1W-PTS51 Manual And Instructions
CJ1W-PTS51 datasheetPDF datasheet
CJ1W-PTS51 Installation Guide
CJ1W-PTS51 Safety Precautions
OMRON CJ1W-PTS51 Product information and technical parameters：
Brand: OMRON
Name: Process Analog I/O Unit
Model: CJ1W-PTS51
Unit classification: CJ1 Special I/O Units.
Product name: ProcessInput Units,
(Isolated-type Thermocouple Input Units).
Input points: 4 inputs.
Signal range selection: Common inputs.
Signal range: Thermocouple: R, S, K, J, T, L, B.
Conversion speed (resolution): Conversion,
speed: 250 ms/4 inputs.
Accuracy at ambient temperature of 25°C:
Accuracy: (±0.3% of PV or ±1°C,
whichever is larger) ±1 digit max.
External connection: Removable terminal block.
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.25A; 24V, --.
Standards: UC1, CE.
A Single Unit Handling All Types of Inputs,
such as Temperature Sensor Inputs and,
Analog Signal Inputs (e.g., 4 to 20 mA or 1 to 5V).
A Unit supports four input channels,
each of which can be set to a
platinum resistance thermometer, thermocouple,
and DC signal (current, voltage).
All inputs are isolated.
