Brand:
OMRON

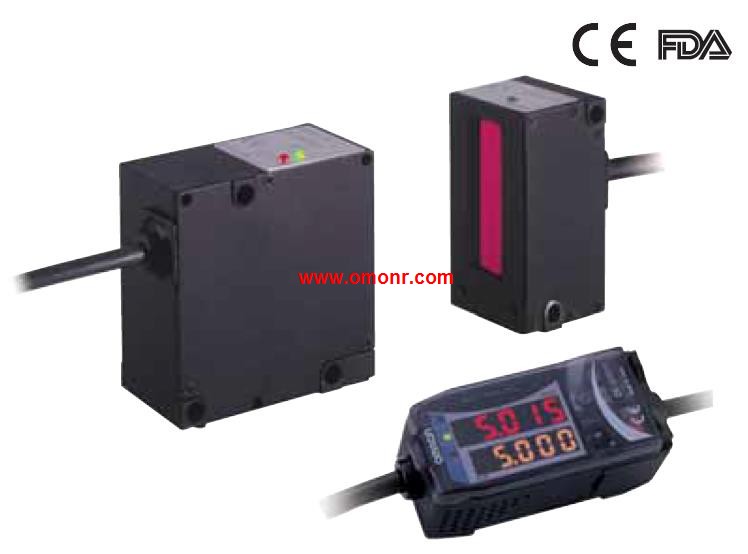

ZX-GT28S11 Smart Sensor
OMRON ZX-GT28S11 Manual And Instructions
ZX-GT28S11 datasheetPDF datasheet
ZX-GT28S11 datasheetPDF datasheet
ZX-GT28S11 User's Manual
ZX-GT28S11 USER'S MANUAL
ZX-GT28S11 Inductive DisplacementIntroduction Manual
ZX-GT28S11 OPERATION MANUAL
OMRON ZX-GT28S11 Product information and technical parameters：
Brand: OMRON
Name: Smart Sensor
Model: ZX-GT28S11
Appearance: Separate type.
Optical system: Through-beam.
Measuring width: 28mm.
Sensing distance: 0 to 500mm.
Resolution: 10µm.
Output type: NPN.
Measurable at any position.
The usual limitations, such as the ''measurement,
area being confined to the center''
or ''large errors due to positioning'',
that used to plague laser measuring sensors,
have now been overcome. Measurements can be,
consistently taken within a 500 mm area,
whatever stage the work is at or whichever way it is inserted.
It can now be set to positions without interference from,
the work feed and without limitations of size of work area.
