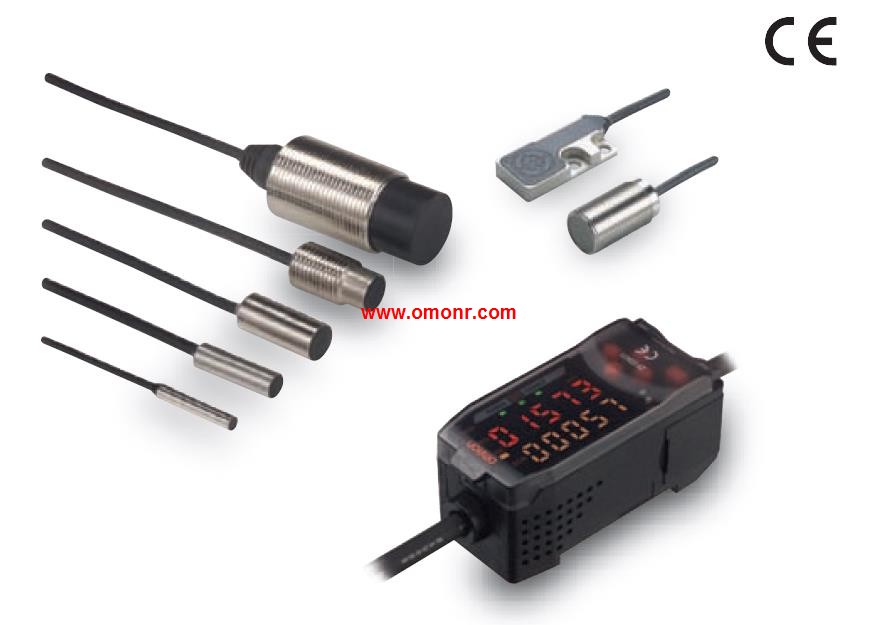

ZX-EDR5T Smart Sensors
OMRON ZX-EDR5T Manual And Instructions
ZX-EDR5T datasheetPDF datasheet
ZX-EDR5T User's Manual
ZX-EDR5T Inductive DisplacementIntroduction Manual
ZX-EDR5T OPERATION MANUAL
OMRON ZX-EDR5T Product information and technical parameters：
Brand: OMRON
Name: Smart Sensors
Model: ZX-EDR5T
Shape: Cylindrical.
Dimensions: 3 dia. x 18 mm.
Sensing distance: 0.5 mm.
Resolution: 1 μm.
High-accuracy Detection of Metal Workpiece Displacement.
Sensor Heads support a wide variety of applications.
Linearity can be adjusted for non-ferrous metals,
such as SUS and aluminum, using the material selection function.
Simple linearity compensation (teaching).
Easily perform calculation for two Sensors by using a Calculating Unit.
Prevent mutual interference for up to five Units by using a Calculating Unit.
