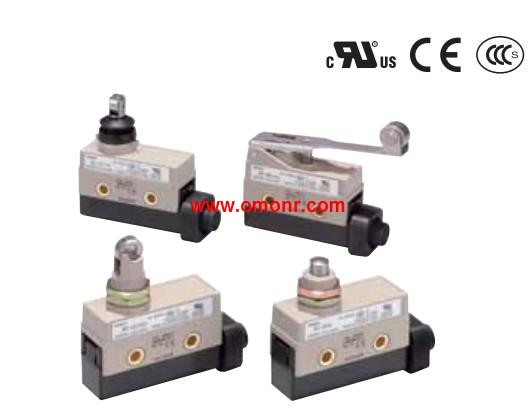

ZC-W55 Enclosed Switch
OMRON ZC-W55 Manual And Instructions
ZC-W55 datasheetPDF datasheet
OMRON ZC-W55 Product information and technical parameters：
Brand: OMRON
Name: Enclosed Switch
Model: ZC-W55
Actuator: Short hinge lever.
Approved Standards: UL CSA EN.
Small, High-precision Enclosed Switch.
Small, High-precision Enclosed Switches with Built-in Basic,
Switches for High Repeatability and Durability of 10 Million,
Operations Minimum.
Same mounting pitch as Z Basic Switch.
Requires less operating force than conventional limit switches.
Lineup includes modes with operation indicators for easy,
maintenance and inspection.
Approved by EN, UL, CSA, and CCC (Chinese standard).
(Ask your OMRON representative for Information on approved models.).
