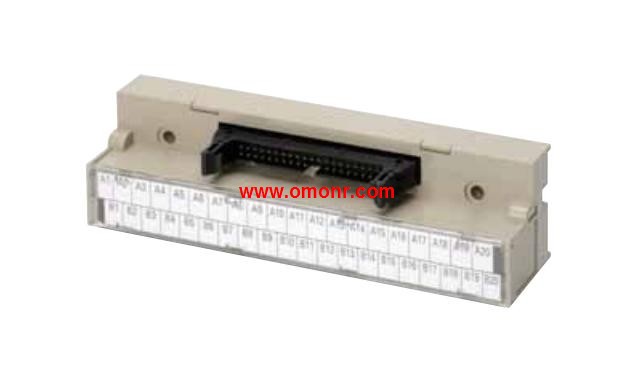

XW2D-34G6 Slim Connector-Terminal Block Conversion Units
OMRON XW2D-34G6 Manual And Instructions
XW2D-34G6 datasheetPDF datasheet
OMRON XW2D-34G6 Product information and technical parameters：
Brand: OMRON
Name: Slim Connector-Terminal Block Conversion Units
Model: XW2D-34G6
Mounted Connector: XG4A MIL Connectors.
No. of poles: 34.
Dimension A: 128.
Dimension B: 100.
Mounted Connector model: XG4A-3431.
Cable Connector model: XG4M-3430-T.
New Slim Connector-Terminal Block,
Conversion Units.
Mounting area reduced by 35% (in comparison with,
40-pole XW2B Units) to contribute to downsizing,
control panels and automatic equipment.
Fallout prevention for terminal screws.
Round or forked crimp terminals can be used.
Mount to DIN Track or via screws.
Unique DIN Track lock can maintain open status,
during DIN Track attachment and removal.
Terminal cover can be locked open.
Screw terminals are arranged by color in groups,
of five to simplify counting terminal numbers.
