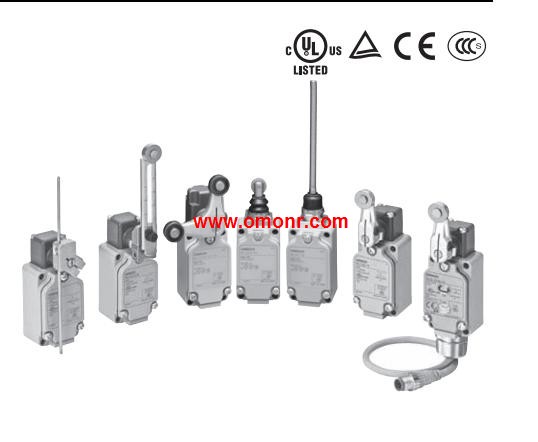

WLSD-TC-N Two-circuit Limit Switch/Long-life Two-circuit Limit Switch
OMRON WLSD-TC-N Manual And Instructions
WLSD-TC-N datasheetPDF datasheet
OMRON WLSD-TC-N Product information and technical parameters：
Brand: OMRON
Name: Two-circuit Limit Switch/Long-life Two-circuit Limit Switch
Model: WLSD-TC-N
Actuator: Horizontal plunger.
Low-temperature.
Select the Best Two-circuit Switch for the,
Operating Environment and Application,
from a Wide Range of Models,
A wide selection of models is available, including General-purpose,
Environment-resistant, and Spatter prevention Switches.
Standard-feature gold-clad crossbar contacts provide high reliability.
Applicable to either standard loads or microloads.
Switches with Lever Actuators provide 90° overtravel,
one-side operation, and four-direction head mounting.
Approved standards: EN/IEC, UL, cUL, and CCC.
Contact your OMRON representative for information on approved models.
