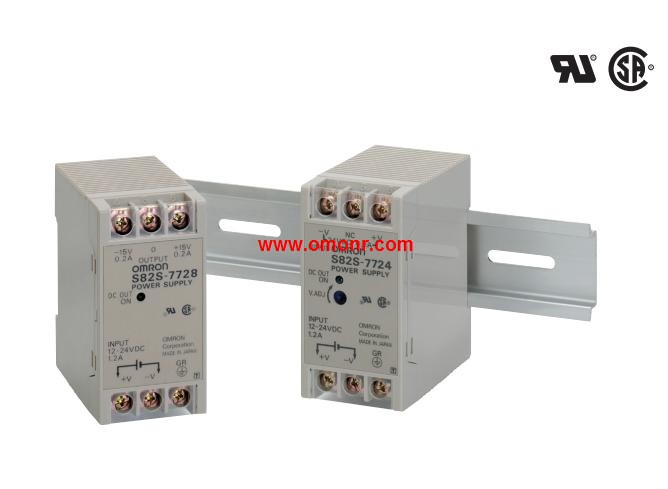

S82S-7305 Switch Mode Power Supply
OMRON S82S-7305 Manual And Instructions
S82S-7305 datasheetPDF datasheet
S82S-7305 Connection Guide
OMRON S82S-7305 Product information and technical parameters：
Brand: OMRON
Name: Switch Mode Power Supply
Model: S82S-7305
Power ratings: 3 W.
Output voltage: 5 V.
Output current: 0.6 A.
Miniature DIN Rail Mounting DC-DC Power.
Supplies.
65 mm depth enables mounting onto control panels with.
100 mm depth.
Inputs: 10.2 to 27.6 VDC (DC input).
7.5-W models provide both ±12-V and ±15-V outputs.
A complete lineup with 10 different models.
UL and CSA approved.
RoHS-compliant.
