LK Automation Limited
Brand:
OMRON

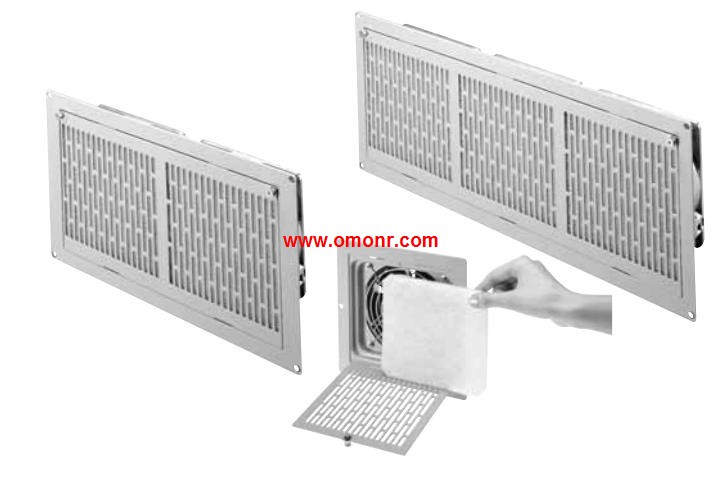

R87B-FA6A15LPFR Box Fan
OMRON R87B-FA6A15LPFR Manual And Instructions
R87B-FA6A15LPFR datasheetPDF datasheet
R87B-FA6A15LPFR Connection Guide
OMRON R87B-FA6A15LPFR Product information and technical parameters：
Brand: OMRON
Name: Box Fan
Model: R87B-FA6A15LPFR
Rated voltage: 230 V.
Permitted voltage fluctuation range: 85% to 110% rated voltage.
Frequency: 50/60 Hz.
Rated rotational speed: 50 Hz, 2100 r/min; 60 Hz, 2200 r/min.
Maximum flow rate: 50 Hz, 0.9 m3/min; 60 Hz, 1.0 m3/min.
Maximum static pressure: 50 Hz, 43 Pa; 60 Hz, 42 Pa.
Noise: 50 Hz, 42 dB; 60 Hz, 43 dB.
Weight: Approx. 1120 g.
Comprehensive Lineup of Single,
Double, and Triple Axial Fans with,
Easy One-step Mounting.
Mounts in a square cutout and conceals the hole-cut to,
simplify installation work.
Cover can be set to open either upward or downward for,
convenience in confined spaces.
Enhanced accessories (finger guard, filter, plug cord,
mounting screws).
Optional Replacement Filter and Vent Attachment.
The lineup includes Single, Double, and Triple Box Fans,
with eight models with plastic blades and eight models with,
metal blades.
...More relevant models >>>>
