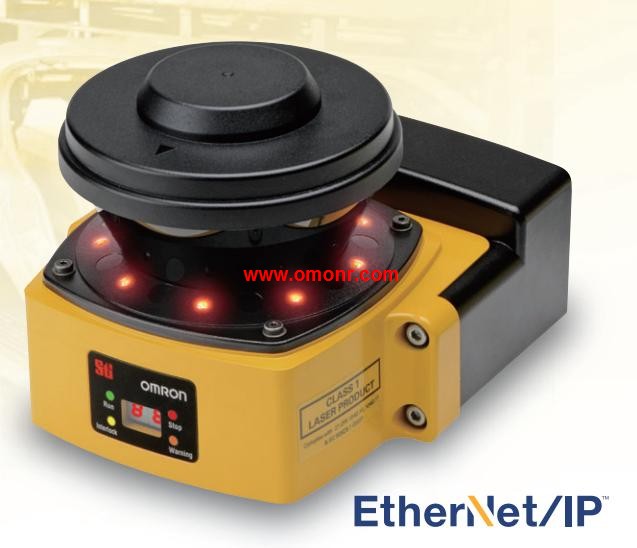

OS32C-BP-4M Safety Laser Scanner
OMRON OS32C-BP-4M Manual And Instructions
OS32C-BP-4M datasheetPDF datasheet
OS32C-BP-4M USER'S MANUAL
OS32C-BP-4M INSTRUCTION MANUAL
OMRON OS32C-BP-4M Product information and technical parameters：
Brand: OMRON
Name: Safety Laser Scanner
Model: OS32C-BP-4M
Description: OS32C with back location cable entry.
Max. Operating Range (Safety Zone): 4m.
Remarks: CD-ROM (Configuration tool) OS supported: Windows 2000,
Windows XP (32-bit version, Service Pack 3 or later),
Windows Vista (32-bit version), Windows 7 (32-bit version/64-bit version),
For configuration tool version, refer to page 23.
Compact (104.5 mm), lightweight (1.3 kg),
and easy-to-install Safety Laser Scanner.
Provides a safety circuit of PLd/Safety Category 3 (ISO13849-1) without a,
dedicated controller.
Type 3 Safety Laser Scanner complies with IEC61496-1/-3.
70 sets of safety zone and warning zone combinations are available,
supporting complicated changes in working environments.
A safety radius up to 4 m and warning zone(s) radius up to 15 m can be set.
The minimum object resolution can be changed to 30, 40, 50 or 70 mm.
The response time is configurable from 80 ms to a maximum of 680 ms.
Reference Boundary Monitoring function prevents unauthorized changes in,
the scanner position.
Minimal down time, sensor block can be replaced without the need to reprogram.
