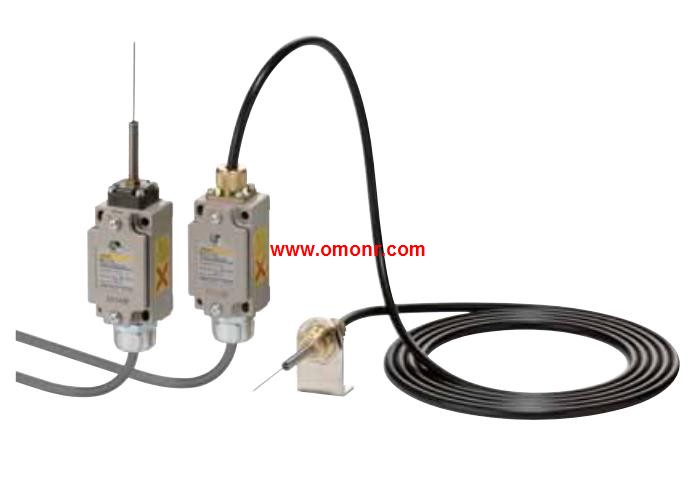

NL3-C 100V Limit Touch Switch
OMRON NL3-C 100V Manual And Instructions
NL3-C 100V datasheetPDF datasheet
OMRON NL3-C 100V Product information and technical parameters：
Brand: OMRON
Name: Limit Touch Switch
Model: NL3-C 100V
Model: Built-in antenna model.
Features: Provides sufficient OT (overtravel); Antenna tip withstands bending.
Antenna: Coil spring.
Series: NL3.
Power supply voltage: 100 VAC.
Object Actuates Switch and Turns.
Built-in Monitor Indicator ON.
Instantaneous operation upon contact with extremely.
limited hysteresis for high-precision position detection.
Detects minute displacement or lightweight objects with.
minimal operating force.
Built-in LED indicator ensures easy operation monitoring.
DC models provide versatile functions in combination.
with the S3D2 Sensor Controller.
