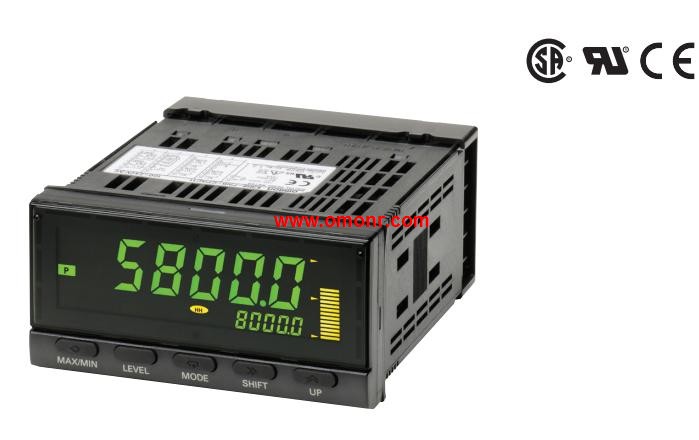

K3HB-PNB-L2AT11 AC/DC24V Time interval table
OMRON K3HB-PNB-L2AT11 AC/DC24V Manual And Instructions
K3HB-PNB-L2AT11 AC/DC24V datasheetPDF datasheet
OMRON K3HB-PNB-L2AT11 AC/DC24V Product information and technical parameters：
Brand: OMRON
Name: Time interval table
Model: K3HB-PNB-L2AT11 AC/DC24V
Input type: NPN/ voltage pulse input type.
Event input terminal 5 points (HOLD, RESET) equipped with.
External power supply DC12V80mA.
Note: K3HB-RPB-A, K3HB-RNB-A is not equipped with event input.
Linearity: voltage; NPN open collector (HH, H, PASS, L, LL).
96 (W) * 48 (H * 95mm) depth.
Power supply voltage: AC/DC24V.
Measurement of 2 points through the speed, time, or cycle of the digital time interval table.
Action determine the color, can switch the green / Red 2 kinds of color display.
Measurement of wide range of pulse interval time.
Measuring, calculating and displaying the pulse interval between 2 points.
Pulse interval measurement range, maximum measurable from
