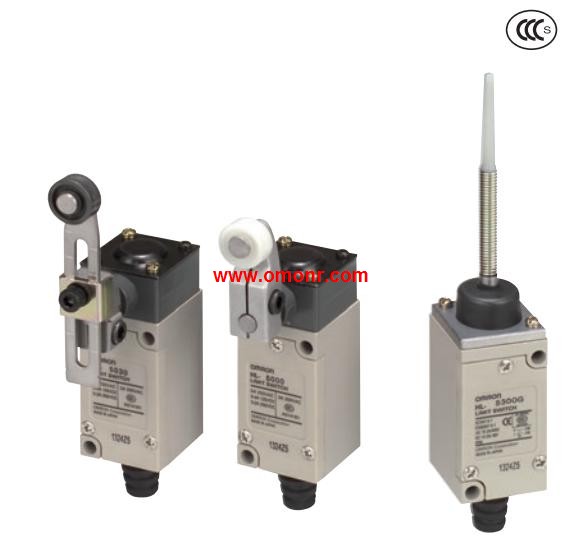

HL-5 Series General-purpose Limit Switch
OMRON HL-5 Series Manual And Instructions
HL-5 Series datasheetPDF datasheet
OMRON HL-5 Series Product information and technical parameters：
Brand: OMRON
Name: General-purpose Limit Switch
Model: HL-5 Series
Economical, Miniature Limit Switch.
Boasting Rigid Construction.
The Head, Box, and Cover mate with ridged surfaces to,
maintain strength.
A unique Head structure provides a large OT for smooth operation.
Easy-to-wire conduit opening design.
Ideal for application in printing machines, forming machines,
and light machines.
(High Switches with high sealing characteristics, such as WL or,
D4C Switches, in locations subject to oil, water, or precipitation.)
Models with grounding terminals conform to the CE marking.
Approved by CCC (Chinese standard).
(Ask your OMRON representative for information on approved models.)
