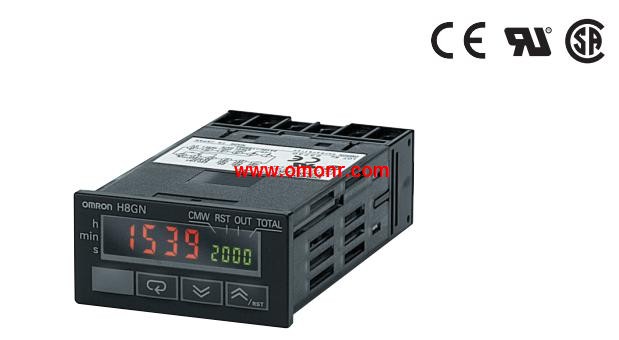

H8GN-AD-FLK Preset Counter/Timer
OMRON H8GN-AD-FLK Manual And Instructions
H8GN-AD-FLK datasheetPDF datasheet
H8GN-AD-FLK User's Manual
H8GN-AD-FLK Communications Manual
OMRON H8GN-AD-FLK Product information and technical parameters：
Brand: OMRON
Name: Preset Counter/Timer
Model: H8GN-AD-FLK
Supply voltage: 24 VDC.
Output: Contact output (SPDT).
Contact output (SPDT): RS-485.
A DIN 48 × 24 Preset Counter.
Compact, Yet Equipped with.
Communication.
Only 48 × 24 × 83 mm (W × H × D),
Switch between 4-digit preset counter and 4-digit timer operation.
While using the preset counter, it is possible to switch the,
display to monitor the totalizing count value (8 digits).
Built-in prescaling for counter operation.
ON/OFF-duty adjustable flicker mode that can be used to per,
form cyclic control is available for timer operation.
SV can be changed using front panel keys to any of four values,
preset in SV-banks.
Water-proof structure to NEMA4X/IP66.
Conforms to UL, CSA, and IEC safety standards as well as CE Marking.
