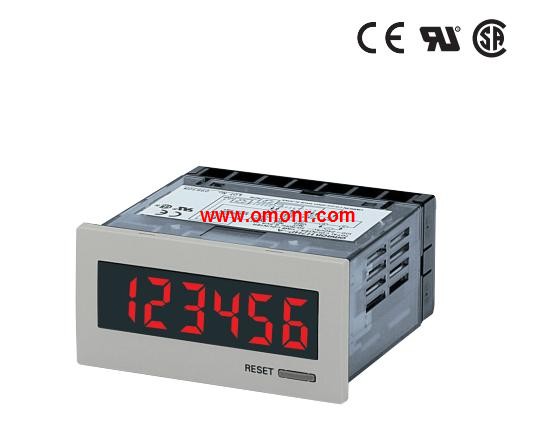

H7HP Series Total Counter/Time Counter
OMRON H7HP Series Manual And Instructions
H7HP Series datasheetPDF datasheet
OMRON H7HP Series Product information and technical parameters：
Brand: OMRON
Name: Total Counter/Time Counter
Model: H7HP Series
DIN 72 x 36-mm Total Counter/Time Counter with.
Easy-to-read Displays and Water and Oil.
Resistance Equivalent to IP66.
Large, easy-to-read displays: 15-mm-high characters for 6-digit mod,
els; 12-mm-high characters for 8-digit models.
High-visibility, negative transmissive LCD display with built-in red LED,
backlight at low power consumption.
IP66 with oil resistance and NEMA4 are achieved by unifying the front,
with the casing case and using oil-resistant materials and parts.
Compact (66 mm) body.
Switch 6-digit models between total counter and time counter operation,
Just change a switch setting for either an NPN or PNP input.
Supports both external resetting and manual resetting.
Finger-protection terminal block cover prevents electrical shock and,
conforms to VDE0106, Part 100.
Safety standards: UL, CSA, EMC (EN 61326), CE Marking.
...More relevant models >>>>
H7HP Series datasheetPDF datasheet
OMRON H7HP Series Product information and technical parameters：
Brand: OMRON
Name: Total Counter/Time Counter
Model: H7HP Series
DIN 72 x 36-mm Total Counter/Time Counter with.
Easy-to-read Displays and Water and Oil.
Resistance Equivalent to IP66.
Large, easy-to-read displays: 15-mm-high characters for 6-digit mod,
els; 12-mm-high characters for 8-digit models.
High-visibility, negative transmissive LCD display with built-in red LED,
backlight at low power consumption.
IP66 with oil resistance and NEMA4 are achieved by unifying the front,
with the casing case and using oil-resistant materials and parts.
Compact (66 mm) body.
Switch 6-digit models between total counter and time counter operation,
Just change a switch setting for either an NPN or PNP input.
Supports both external resetting and manual resetting.
Finger-protection terminal block cover prevents electrical shock and,
conforms to VDE0106, Part 100.
Safety standards: UL, CSA, EMC (EN 61326), CE Marking.
Count input: PNP/NPN universal DC voltage input(4.5 to 30 VDC).
Max. counting speed: 30 Hz ←→ 1 kHz(switchable).
Display: 7-segment LCD.
Model: Black body.
Eight-digits, counting range 0 to 99999999.
Dual input speed: 30 Hz ←→ 1 kHz,
(except for AC/DC multivoltage input models). Type: H5CX-A series H7HP Series.
Time specifications: 0.001 to 9.999 s, 0.01 to 99.99 s,
0.1 to 999.9 s, 1 to 9999 s, 1 s to 99 min 59 s, 0 H7HP Series1 to 999.9 min,
1 to 9999 min, 1 min to 99 h 59 min, 0.1 to 999.9 h, 1 to 9999 h.
Operating modes: Timer Mode, A: Signal ON Delay I, A-1: Signal ON Delay II,
A-2: Power ON Delay I, A-3: Power ON Delay II, b: Repeat cycle 1,
b-1: Repeat cycle 2, d: Signal OFF Delay, E: Interval, F: Cumulative,
Z: ON/OFF-duty-adjustable flicker, S: Stopwatch, Twin Timer Mode,
toff: Flicker OFF Start 1, ton: Flicker ON Start 1,
toff-1: Flicker OFF Start 2, ton-1: Flicker ON Start 2 H7HP Series.
External connections: 11-pin socket.
Input: Signal, Reset, Gate (NPN/PNP input).
Output: Contact output (time-limit SPDT).
Supply voltage: 12 to 24 VDC/24 VAC.
The Timer with the Shortest Body,
in the Industry H7HP Series. An Ideal Indicator for OK/NG Judgements in Automated and,
Picking Machines, Measuring Factors such as Pressure,
Load, Torque, and Weight Using Load Cell Signal Input.
Easy recognition of judgement results using color display that can be switched,
between red and green.
Equipped with a position meter for monitoring operating status trends.
External event input allows use in various measurement and discrimination, applications.
Input 0.001 mVDC or higher (0.000 to 19.999 mV range supported).
External power takeoff of 100 mA at 10 VDC provided. (Models with 5-VDC,
power takeoff also available.).
Series expanded to include DeviceNet models.
Short body with depth of only 95 mm (from behindd the front panel), or 97 mm,
for DeviceNet models H7HP Series.
UL certification approval (Certification Mark License).
CE Marking conformance by third party assessment body.
Water-resistant enclosure conforms to NEMA 4X (equivalent to IP66).
CCapable of high-speed sampling at 50 times per second (20 ms) H7HP Series.
• Easy-to-set two-point scaling allows conversion and display of any,
user-set values.
Max. counting speed: 30 Hz ←→ 1 kHz(switchable).
Display: 7-segment LCD.
Model: Black body.
Eight-digits, counting range 0 to 99999999.
Dual input speed: 30 Hz ←→ 1 kHz,
(except for AC/DC multivoltage input models). Type: H5CX-A series H7HP Series.
Time specifications: 0.001 to 9.999 s, 0.01 to 99.99 s,
0.1 to 999.9 s, 1 to 9999 s, 1 s to 99 min 59 s, 0 H7HP Series1 to 999.9 min,
1 to 9999 min, 1 min to 99 h 59 min, 0.1 to 999.9 h, 1 to 9999 h.
Operating modes: Timer Mode, A: Signal ON Delay I, A-1: Signal ON Delay II,
A-2: Power ON Delay I, A-3: Power ON Delay II, b: Repeat cycle 1,
b-1: Repeat cycle 2, d: Signal OFF Delay, E: Interval, F: Cumulative,
Z: ON/OFF-duty-adjustable flicker, S: Stopwatch, Twin Timer Mode,
toff: Flicker OFF Start 1, ton: Flicker ON Start 1,
toff-1: Flicker OFF Start 2, ton-1: Flicker ON Start 2 H7HP Series.
External connections: 11-pin socket.
Input: Signal, Reset, Gate (NPN/PNP input).
Output: Contact output (time-limit SPDT).
Supply voltage: 12 to 24 VDC/24 VAC.
The Timer with the Shortest Body,
in the Industry H7HP Series. An Ideal Indicator for OK/NG Judgements in Automated and,
Picking Machines, Measuring Factors such as Pressure,
Load, Torque, and Weight Using Load Cell Signal Input.
Easy recognition of judgement results using color display that can be switched,
between red and green.
Equipped with a position meter for monitoring operating status trends.
External event input allows use in various measurement and discrimination, applications.
Input 0.001 mVDC or higher (0.000 to 19.999 mV range supported).
External power takeoff of 100 mA at 10 VDC provided. (Models with 5-VDC,
power takeoff also available.).
Series expanded to include DeviceNet models.
Short body with depth of only 95 mm (from behindd the front panel), or 97 mm,
for DeviceNet models H7HP Series.
UL certification approval (Certification Mark License).
CE Marking conformance by third party assessment body.
Water-resistant enclosure conforms to NEMA 4X (equivalent to IP66).
CCapable of high-speed sampling at 50 times per second (20 ms) H7HP Series.
• Easy-to-set two-point scaling allows conversion and display of any,
