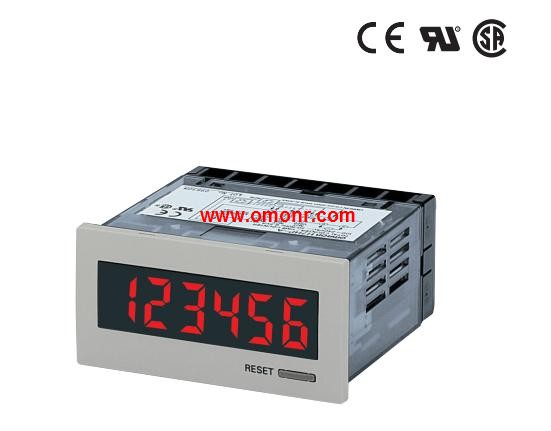

H7HP-AD Total Counter/Time Counter
OMRON H7HP-AD Manual And Instructions
H7HP-AD datasheetPDF datasheet
H7HP-AD Communications Manual
OMRON H7HP-AD Product information and technical parameters：
Brand: OMRON
Name: Total Counter/Time Counter
Model: H7HP-AD
Supply voltage: 12 to 24 VDC.
6-digit total counter/time counter: Light gray.
DIN 72 x 36-mm Total Counter/Time Counter with.
Easy-to-read Displays and Water and Oil.
Resistance Equivalent to IP66.
Large, easy-to-read displays: 15-mm-high characters for 6-digit mod,
els; 12-mm-high characters for 8-digit models.
High-visibility, negative transmissive LCD display with built-in red LED,
backlight at low power consumption.
IP66 with oil resistance and NEMA4 are achieved by unifying the front,
with the casing case and using oil-resistant materials and parts.
Compact (66 mm) body.
Switch 6-digit models between total counter and time counter operation,
Just change a switch setting for either an NPN or PNP input.
Supports both external resetting and manual resetting.
Finger-protection terminal block cover prevents electrical shock and,
conforms to VDE0106, Part 100.
Safety standards: UL, CSA, EMC (EN 61326), CE Marking.
