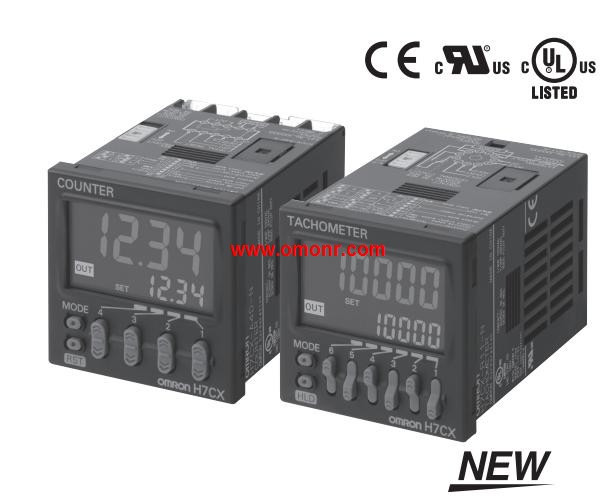

H7CX-R11-N Multifunction Counter/Tachometer
OMRON H7CX-R11-N Manual And Instructions
H7CX-R11-N datasheetPDF datasheet
H7CX-R11-N datasheetPDF datasheet
H7CX-R11-N Communications Manual
OMRON H7CX-R11-N Product information and technical parameters：
Brand: OMRON
Name: Multifunction Counter/Tachometer
Model: H7CX-R11-N
Type: H7CX-R Series.
Classification: Tachometer.
Configuration: Tachometer.
External connections: 11-pin socket.
Settings: 1-stage (1 input and output).
Display digit: 6 digits.
Outputs: Contact output (SPDT).
Power supply voltage: 100 to 240 VAC.
Ultra-compact Counter Provides More,
Complete Functionality.
Basic Features.
Short body with depth of only 59 mm (for 12 to 24-VDC Models with,
Screw Terminals).
Better readability with character height of 12 mm on 4-digit models,
and 10 mm on 6-digit models.
The present value display characters can be switched between red,
green, and orange.
Safety and Reliability.
New set value limit and counter functions have been added.
Other Features.
Front Panel can be changed to white or light gray.
New models with two tachometer inputs and two tachometer outputs have,
been added to the series.
