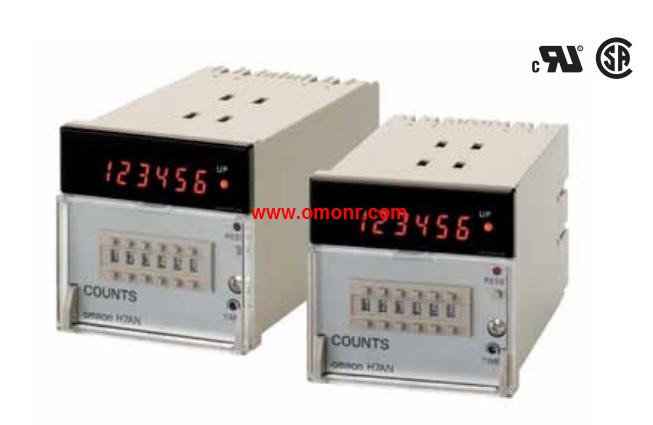

H7AN-T4 Digital Counter
OMRON H7AN-T4 Manual And Instructions
H7AN-T4 datasheetPDF datasheet
H7AN-T4 User's Manual

OMRON H7AN-T4 Product information and technical parameters:
Brand: OMRON
Name: Digital Counter
Model: H7AN-T4
Operating method: ncrementing and decrementing (selectable with DIP switch).
Mounting method: Flush mounting.
Input signal method (Count and reset inputs): Contact and transistor input, voltage (H and L).
Memory backup: No .
Display: Yes (10-mm high 7-segment LED).
Models: 4 digits.
A DIN 72 x 72 mm Best-selling Counter.
Easy setting with thumbwheel switches.
A draw-out construction enables maintenance without rewiring.
Models with 2-, 4-, 6-, or 8-digit displays are also available.
Total Counter models are also Available.
Complies with UL and CSA Marking.

Supply voltage: 24 to 240 VAC/DC.
Control output: Contact output, SPDT (time-limit SPDT).
Eight-mode Timer.
Multiple time ranges and operating modes let you cover a wide,
range of applications.
The time-limit DPDT output contacts can be changed to time-limit,
SPDT and instantaneous SPDT output contacts using a switch H7AN-T4.
Sequence checks are easily performed by setting an instanta,
neous output to 0 H7AN-T4
Start signal control for the H3DK-M. Rated supply voltage: 100 to 240 VAC.
Resetting system (See note.): Electric resetting.
Control output: DPDT contact output,
(Time-limit output SPDT and instantaneous output SPDT).
Time range: 0.5 s to 30 h (30 s, 3 min, 30 min, 3 h, 30 h).
Large Setting Dial and Moving Pointers Ideal,
for Easy Operation and Monitoring H7AN-T4.
Incorporating an easy-to-see large setting dial with moving pointers.
Wide time-setting range of 0.2 s to 60 h.
(available through three time-range model types).
Wide AC power supply range (100 to 240 VAC).
IP65 watertight and dust-tight front panel.
Approved by UL and CSA.
Conforms to EN61812-1 and IEC60664-1.
4 kV for Low Voltage, and EMC Directives H7AN-T4.
Conforms to EMC standards.
Six-language instruction manual provided.
Programmable contact enables the building of a self-holding,
relay circuit as well as built-in instantaneous contact. (-NS).
Memory retention (-NSR).
Finger protection terminal block.
Enables easy sequence checks through instantaneous outputs.
for a zero set value at any time range. Miniature DIN-sized (48 x 48 mm) Quartz.
Timer with Abundant Series Versions.
Series version cover a wide range of rated times; 9.999 s,
99.99 s, 999.9 s, 99 min 59 s, and 99 hrs 59 min.
Selection of elapsed time indication, remaining time indication,
contact output, and transistor output types to suit requirements.
Power supply freely selectable within a range of 100 to,
240 VAC, as well ass 12 to 48 VDC H7AN-T4.
Certified for UL and CSA safety standards. 1/32 DIN Digital Panel Meter for Downsizing.
Equipment and Control Panels.
Compact size: 48 x 24 x 82 (W x H x D).
Multi-input compatible: DC voltage/current, rotary pulse.
Two display colors (switchable): green/red H7AN-T4.
Selectable outputs.
CE marking and UL/CSA approval.
Splash-proof construction (NEMA4X: equivalent to IP66).
