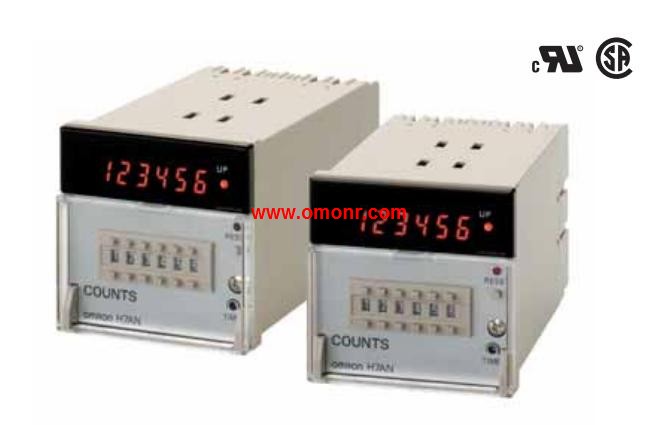

H7AN-ET4M Digital Counter
OMRON H7AN-ET4M Manual And Instructions
H7AN-ET4M datasheetPDF datasheet
H7AN-ET4M User's Manual
OMRON H7AN-ET4M Product information and technical parameters：
Brand: OMRON
Name: Digital Counter
Model: H7AN-ET4M
Operating method: Reversible (selectable with rotary DIP switch) between,
0 and the full scale; Incrementing/decrementing A/D (command inputs);
Incrementing/decrementing B/E (individual inputs);
Incrementing/decrementing C/F (phase difference inputs).
Mounting method: Flush mounting.
Input signal method (Count and reset inputs): Contact and transistor input, voltage (H and L).
Memory backup: Yes/No (Selectable using DIP switch).
Display: Yes (10-mm high 7-segment LED).
Models: 4 digits.
A DIN 72 x 72 mm Best-selling Counter.
Easy setting with thumbwheel switches.
A draw-out construction enables maintenance without rewiring.
Models with 2-, 4-, 6-, or 8-digit displays are also available.
Total Counter models are also Available.
Complies with UL and CSA Marking.
