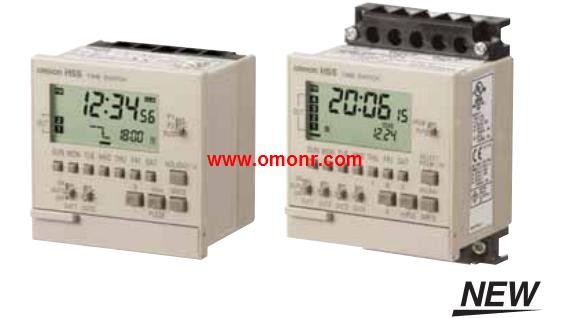

H5S-YFA2D-X Digital timing switch
OMRON H5S-YFA2D-X Manual And Instructions
H5S-YFA2D-X datasheetPDF datasheet
OMRON H5S-YFA2D-X Product information and technical parameters：
Brand: OMRON
Name: Digital timing switch
Model: H5S-YFA2D-X
Control cycle: one year.
Output number: 2 channel.
Installation: surface mount.
Power supply voltage: DC24V.
Japanese label model.
The new standard for use of more convenient timing switches.
On the basis of a week of 2 channel type, the output of 4 channel type / year type also joined the series.
Use the independent key to improve the working performance significantly.
Holiday, holiday and other output OFF have a simple holiday set function.
Power OFF can also be set.
Test mode that can be easily recognized by the program.
In accordance with UL/CSA, electrical safety standard certification, EMC standards.
Industry first
Can reduce the set value, achieve fast setting!
The built-in temperature compensation circuit, even in a larger temperature range,
Can also achieve high timing accuracy.
Built in
