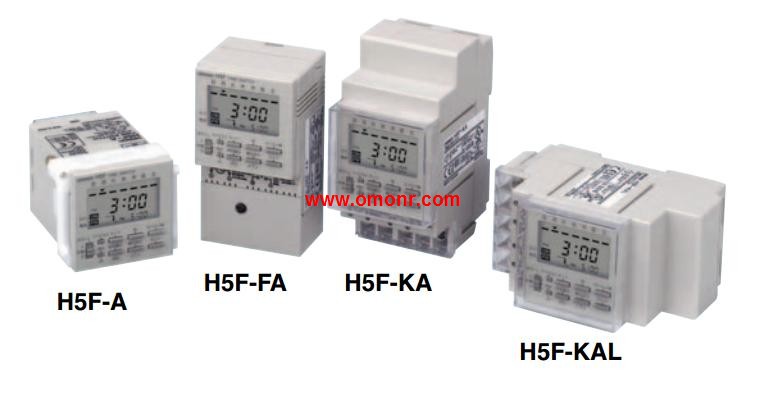

H5F-A Digital clock timing switch
OMRON H5F-A Manual And Instructions
H5F-A datasheetPDF datasheet
H5F-A User's Manual
OMRON H5F-A Product information and technical parameters：
Brand: OMRON
Name: Digital clock timing switch
Model: H5F-A
Project: Japanese specification model.
Installation method: embedded installation.
All day control operation is simple
Can be carried out on the choice of a few weeks of action. (but only 1 of the week moves and all week specific dates can be set)
ON/OFF time setting has 24 steps.
Consistent with CE markers. Through the UL, CSA standard certification.
Rest day function can be easily carried out on holidays, such as the setting of a sudden break.
Test mode function can easily confirm the program.
Can also be used to deal with a sudden change in the way of a semi automatic work.
The pulse action can cope with daylight saving time.
All models are equipped with finger protection function.
Product series contains embedded installation, surface mount, the size of the agreement and other ways.
The same setting can be done with the timer action.
