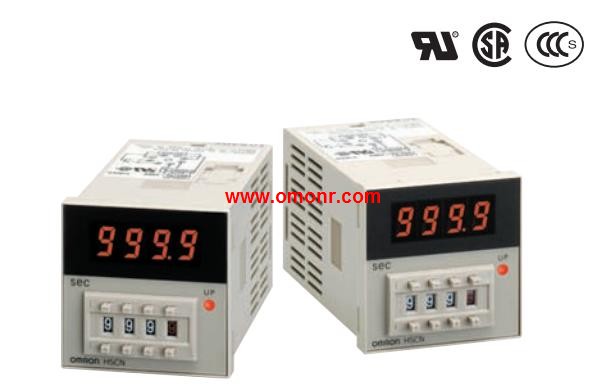

H5CN-XDN Digital Timer
OMRON H5CN-XDN Manual And Instructions
H5CN-XDN datasheetPDF datasheet
H5CN-XDN INSTRUCTION MANUAL
OMRON H5CN-XDN Product information and technical parameters：
Brand: OMRON
Name: Digital Timer
Model: H5CN-XDN
Display type: UP display timer (increments form 0 to the set time).
Output type: Contact output (SPDT).
Pin type: 8-pin.
Memory backup: Not provided.
Supply voltage: 100 to 240 VAC, 12 to 48 VDC.
Rated time: 1 min to 99 h 59 min(See note 3.).
Miniature DIN-sized (48 x 48 mm) Quartz.
Timer with Abundant Series Versions.
Series version cover a wide range of rated times; 9.999 s,
99.99 s, 999.9 s, 99 min 59 s, and 99 hrs 59 min.
Selection of elapsed time indication, remaining time indication,
contact output, and transistor output types to suit requirements.
Power supply freely selectable within a range of 100 to,
240 VAC, as well as 12 to 48 VDC.
Certified for UL and CSA safety standards.
