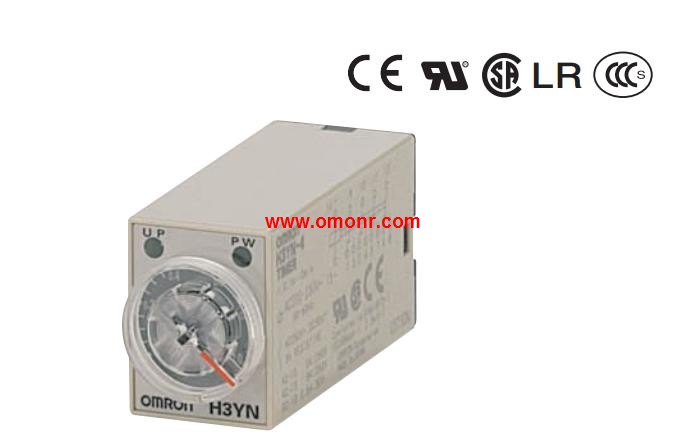

H3YN-4-Z-B Solid-state Timer
OMRON H3YN-4-Z-B Manual And Instructions
H3YN-4-Z-B datasheetPDF datasheet
OMRON H3YN-4-Z-B Product information and technical parameters：
Brand: OMRON
Name: Solid-state Timer
Model: H3YN-4-Z-B
Supply voltage: 24 VDC.
Time-limit contact: 4PDT (Twin contacts).
Short-time range model (0.1 s to 10 min).
Miniature Timer with Multiple Time Ranges,
and Multiple Operating Modes.
UL listed when used with a Push-In Plus Terminal Block Socket.
Conforms to CSA, CE Marking, LR, and CCC.
Black design with power supply terminals on top and contact output,
terminals on bottom.
Standard multiple operating modes and multiple time ranges.
Pin configuration compatible with MY Power Relay.
Minimizes stock.
