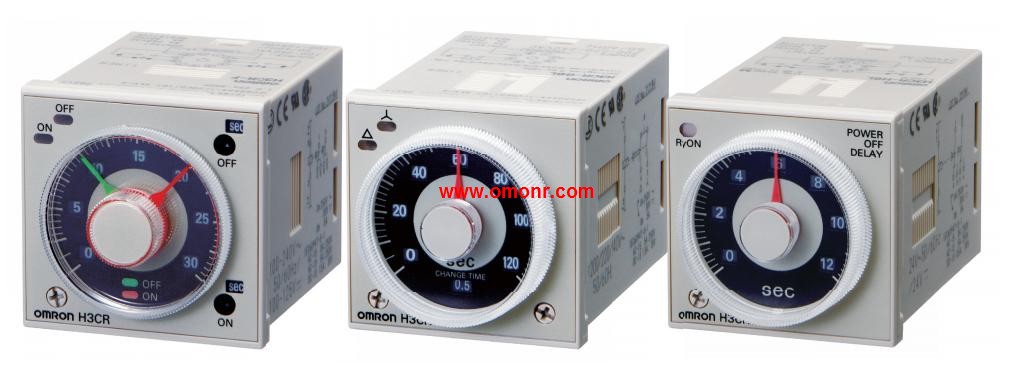

H3CR-H8RL Solid-state Power OFF-delay Timers
OMRON H3CR-H8RL Manual And Instructions
H3CR-H8RL datasheetPDF datasheet
H3CR-H8RL INSTRUCTION MANUAL
OMRON H3CR-H8RL Product information and technical parameters：
Brand: OMRON
Name: Solid-state Power OFF-delay Timers
Model: H3CR-H8RL
Input: With reset input.
Output: SPDT.
Supply voltage: 100 to 120 VAC, 200 to 240 VAC, 24 VAC/DC, 48 VDC, 100 to 125 VDC.
8-pin models: S-series, M-series.
DIN 48 X 48-mm Power OFF-delay Timer.
Long power OFF-delay times;
S-series: up to 12 seconds,
M-series: up to 12 minutes.
Models with forced-reset input are available.
11-pin and 8-pin models are available.
