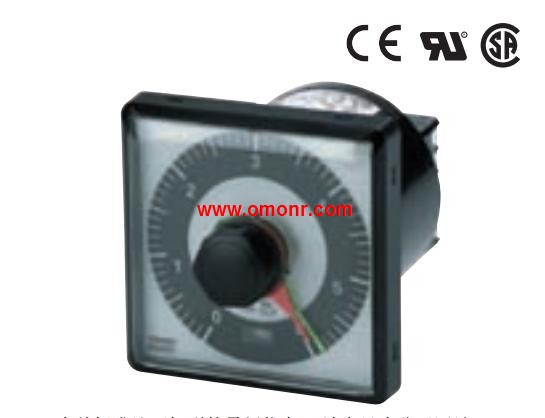

H3AM-NSR-C Mechatronic Analog Timer
OMRON H3AM-NSR-C Manual And Instructions
H3AM-NSR-C datasheetPDF datasheet
H3AM-NSR-C INSTRUCTION MANUAL
OMRON H3AM-NSR-C Product information and technical parameters：
Brand: OMRON
Name: Mechatronic Analog Timer
Model: H3AM-NSR-C
Rated supply voltage: 100 to 240 VAC.
Resetting system (See note.): Electric resetting.
Control output: DPDT contact output,
(Time-limit output SPDT and instantaneous output SPDT).
Time range: 0.2 s to 12 h (12 s, 120 s, 12 min, 120 min, 12 h).
Large Setting Dial and Moving Pointers Ideal,
for Easy Operation and Monitoring.
Incorporating an easy-to-see large setting dial with moving pointers.
Wide time-setting range of 0.2 s to 60 h.
(available through three time-range model types).
Wide AC power supply range (100 to 240 VAC).
IP65 watertight and dust-tight front panel.
Approved by UL and CSA.
Conforms to EN61812-1 and IEC60664-1.
4 kV for Low Voltage, and EMC Directives.
Conforms to EMC standards.
Six-language instruction manual provided.
Programmable contact enables the building of a self-holding,
relay circuit as well as built-in instantaneous contact. (-NS).
Memory retention (-NSR).
Finger protection terminal block.
Enables easy sequence checks through instantaneous outputs.
for a zero set value at any time range.
