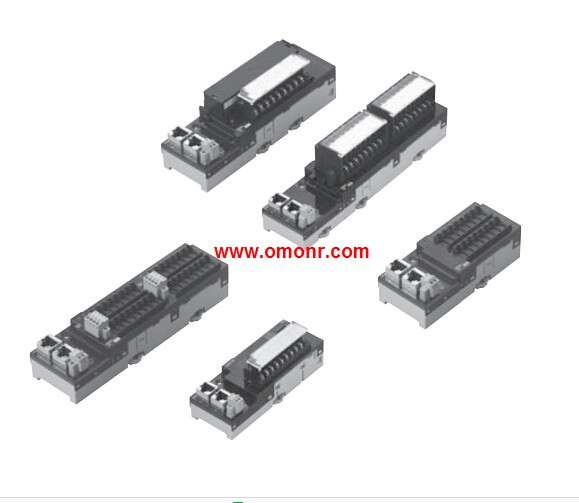

GX-MD3228 Digital I/O Terminal 3-tier Terminal Block Type
OMRON GX-MD3228 Manual And Instructions
GX-MD3228 datasheetPDF datasheet
GX-MD3228 PROGRAMMING MANUAL
GX-MD3228 INSTRUCTION MANUAL
GX-MD3228 Safety Precautions
OMRON GX-MD3228 Product information and technical parameters：
Brand: OMRON
Name: Digital I/O Terminal 3-tier Terminal Block Type
Model: GX-MD3228
Internal I/O common: PNP.
I/O indicators: LED display (yellow). 140 mA max.
(for 20.4 to 26.4-VDC power supply voltage)
e-CON Connector insertion durability: 50 times.
Weight: 220 g max.
Expansion functions: No.
Short-circuit protection function: Available at input,
section only (Operates at 50 mA/point min.)
Easy wiring using industry standard,
e-CON connectors.
Special wiring tool is not necessary.
Digital I/O terminal with industry,
standard e-CON connectors.
A common terminal is provided for,
each connector.
The I/O terminal and the sensors can,
be connected directly.
Input response time can be switched for,
high-speed processing.
Selectable node address setting methods:
setting with rotary,
switch and with tool software.
When setting the nodes with rotary switch,
setting is easy and node identification,
becomes possible for maintenance.
