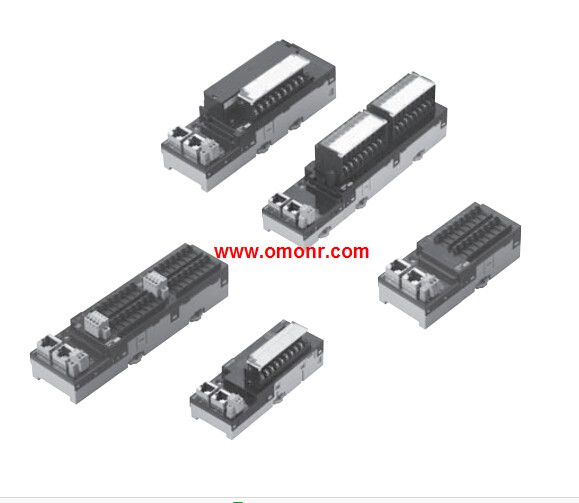

GX-MD1622 Digital I/O Terminal 3-tier Terminal Block Type
OMRON GX-MD1622 Manual And Instructions
GX-MD1622 datasheetPDF datasheet
GX-MD1622 PROGRAMMING MANUAL
GX-MD1622 INSTRUCTION MANUAL
GX-MD1622 Safety Precautions
OMRON GX-MD1622 Product information and technical parameters：
Brand: OMRON
Name: Digital I/O Terminal 3-tier Terminal Block Type
Model: GX-MD1622
Internal I/O common: PNP.
I/O indicators: LED display (yellow).
Unit power supply current consumption: 90 mA max.
(for 20.4 to 26.4-VDC power supply voltage)
Weight: 370 g max.
Expansion functions: No.
Short-circuit protection function: No.
A common terminal is provided for each contact.
It eliminate the needs for relay terminal blocks.
It is unnecessary to share the common terminal,
among multiple contacts.
Easy-to-find wiring locations.
Detachable screw terminal block facilitates the maintenance.
Input response time can be switched for high-speed processing.
Selectable node address setting methods: setting with rotary,
switch and with tool software.
When setting the nodes with rotary switch, setting is easy and,
node identification becomes possible for maintenance.
