Brand:
OMRON

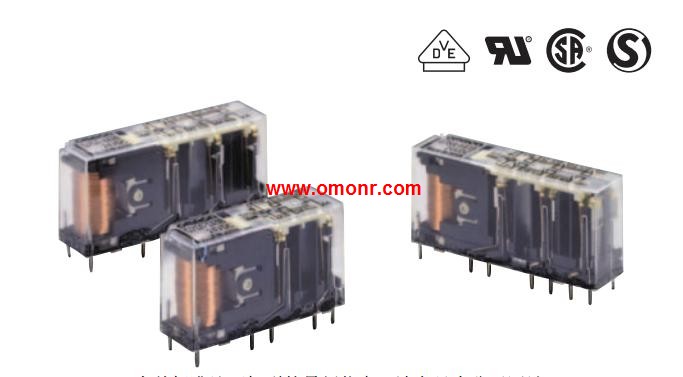

G7SA-2A2B Relays with Forcibly Guided Contacts
OMRON G7SA-2A2B Manual And Instructions
G7SA-2A2B datasheetPDF datasheet
OMRON G7SA-2A2B Product information and technical parameters：
Brand: OMRON
Name: Relays with Forcibly Guided Contacts
Model: G7SA-2A2B
Type: Standard.
Sealing: Flux-tight.
Poles: 4 poles.
Contact configuration: DPST-NO, DPST-NC.
Rated voltage: 12, 18, 21, 24, 48, 110 VDC.
Compact, Slim Relays Conforming to,
EN Standards.
Relays with forcibly guided contacts,
(EN50205 Class A, certified by VDE).
Supports the CE marking of machinery (Machinery Directive).
Helps avoid hazardous machine status when used as part of,
an interlocking circuit.
Four-pole and six-pole Relays are available.
The Relay’s terminal arrangement simplifies PWB pattern design.
Reinforced insulation between inputs and outputs.
Reinforced insulation between some poles of different polarity.
...More relevant models >>>>
