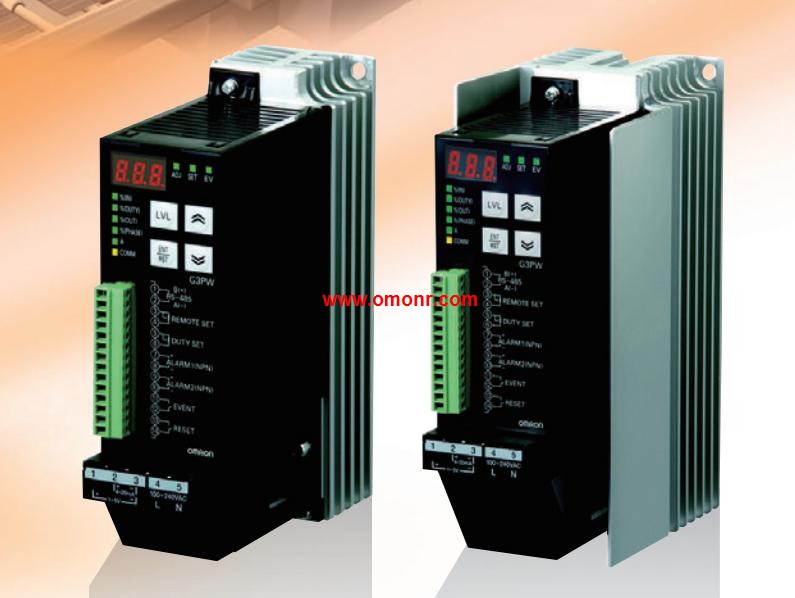

G3PW-A245EU-C Single-phase Power Controller
OMRON G3PW-A245EU-C Manual And Instructions
G3PW-A245EU-C datasheetPDF datasheet
G3PW-A245EU-C USER'S MANUAL
G3PW-A245EU-C INSTRUCTION MANUAL
OMRON G3PW-A245EU-C Product information and technical parameters：
Brand: OMRON
Name: Single-phase Power Controller
Model: G3PW-A245EU-C
Control terminal block: Screwless clamp terminal block.
Type: Standard.
Capacity: 45 A, 100 to 240 VAC.
Heater burnout detection: No.
Communications: No.
High-precision Control with Easy Setup,
Precise heater burnout detection.
Set value and present value monitoring with indicators.
Phase control or optimum cycle control.
RS-485 communications to set manipulated variables and,
monitor load current.
Total run time monitoring.
Output modes for phase control: proportional to phase angle,
proportional to voltage, proportional to square voltage,
and constant-current control.
Application with various loads: constant load resistance,
variable load resistance.
UL, and IEC/EN (TÜV) certified.
