Brand:
OMRON

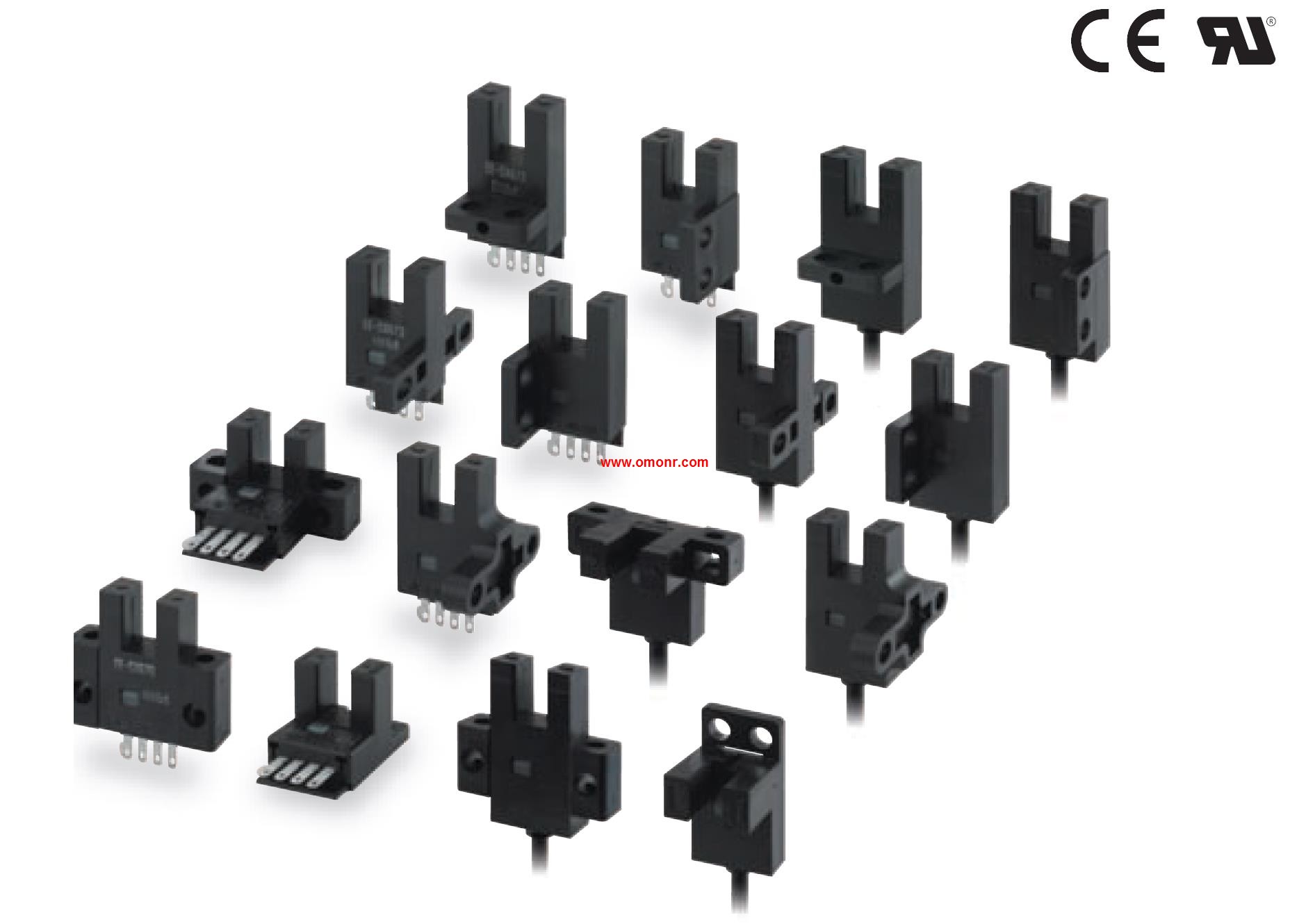

EE-SX471 Slot-type Photomicrosensor
OMRON EE-SX471 Manual And Instructions
EE-SX471 datasheetPDF datasheet
EE-SX471 INSTRUCTION sheet
OMRON EE-SX471 Product information and technical parameters：
Brand: OMRON
Name: Slot-type Photomicrosensor
Model: EE-SX471
Appearance: L-shaped.
Sensing method: Throughbeam type(with slot).
Connecting method: Connector(4 poles).
Sensing distance: 5 mm (slot width).
Output configuration: Light-ON.
Indicator mode: Incident light.
Model: NPN output.
Global Standard Slot-type.
photomicrosensors with 50- to,
100-mA direct switching capacity.
Series includes models that enable switching between,
dark-ON and light-ON operation.
Response frequency as high as 1 kHz.
Easy operation monitoring with bright light indicator.
Wide operating voltage range: 5 to 24 VDC.
Models in which the light indicator turns ON for dark-ON,
operation are also available.
A wide range of variations in eight different shapes.
Flexible robot cable is provided as a standard feature.
...More relevant models >>>>
