LK Automation Limited
Brand:
OMRON

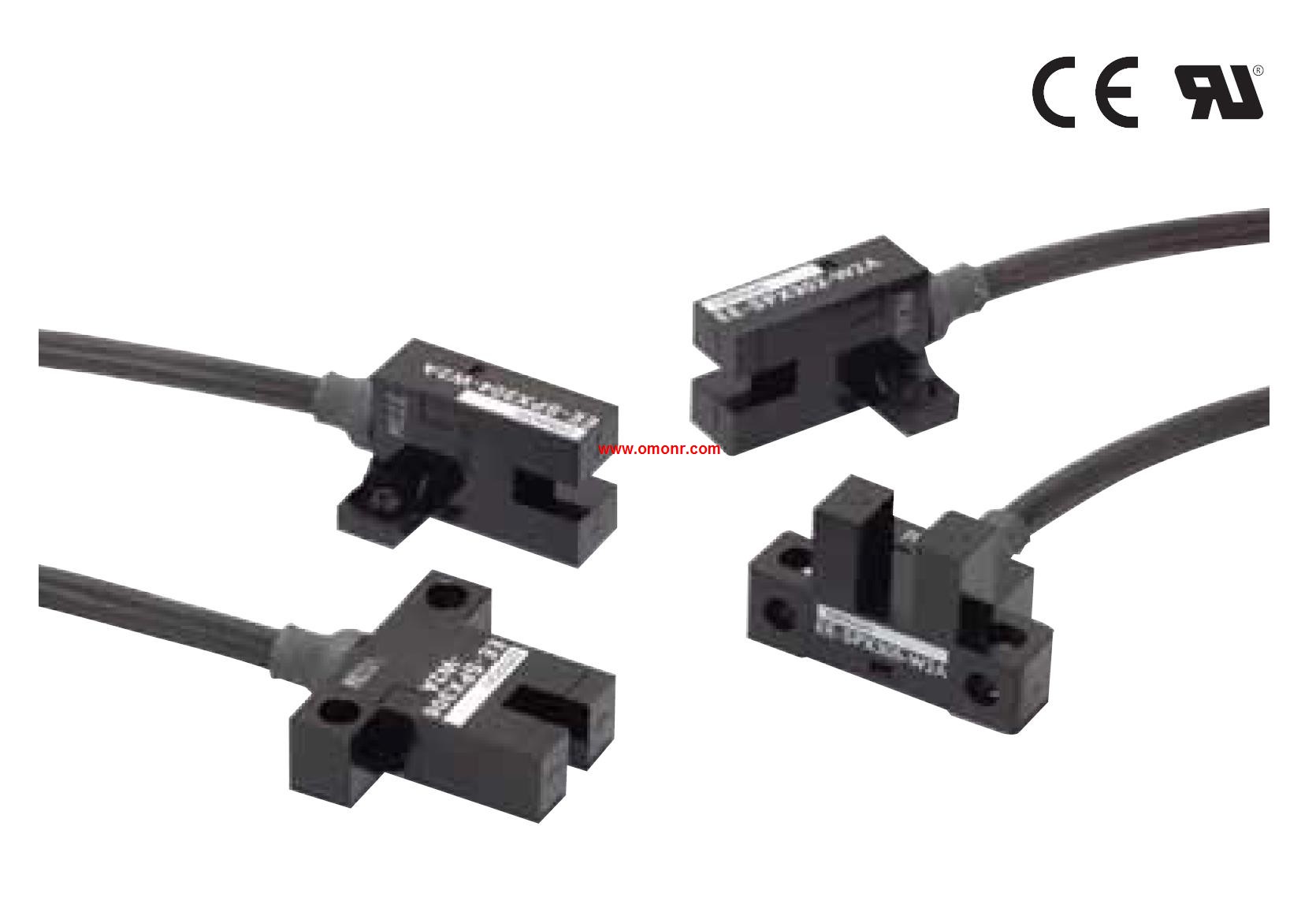

EE-SPW321-A Pre-wired Photomicrosensor with Amplifier and Cable
OMRON EE-SPW321-A Manual And Instructions
EE-SPW321-A datasheetPDF datasheet
EE-SPW321-A INSTRUCTION sheet
OMRON EE-SPW321-A Product information and technical parameters：
Brand: OMRON
Name: Pre-wired Photomicrosensor with Amplifier and Cable
Model: EE-SPW321-A
Sensing method: Through-beam type.
Sensing distance: 300 mm.
Output type: NPN output.
Output configuration: Dark-ON.
Cable length: 2 m.
Cable length from emitter to amplifier: 1 m.
Compact, Thin-profile.
Photomicrosensor with special amplifier.
Slim amplifier (50 × 7.5 × 12 mm) can be handled like a cable.
Provided with two operation indicators, enabling monitoring from the,
amplifier housing and sensor head.
Simple wiring with a 3-conductor cable.
Wide operating voltage range: 12 to 24 VDC.
...More relevant models >>>>
EE-SPW321-A datasheetPDF datasheet
EE-SPW321-A INSTRUCTION sheet
OMRON EE-SPW321-A Product information and technical parameters：
Brand: OMRON
Name: Pre-wired Photomicrosensor with Amplifier and Cable
Model: EE-SPW321-A
Sensing method: Through-beam type.
Sensing distance: 300 mm.
Output type: NPN output.
Output configuration: Dark-ON.
Cable length: 2 m.
Cable length from emitter to amplifier: 1 m.
Compact, Thin-profile.
Photomicrosensor with special amplifier.
Slim amplifier (50 × 7.5 × 12 mm) can be handled like a cable.
Provided with two operation indicators, enabling monitoring from the,
amplifier housing and sensor head.
Simple wiring with a 3-conductor cable.
Wide operating voltage range: 12 to 24 VDC.
