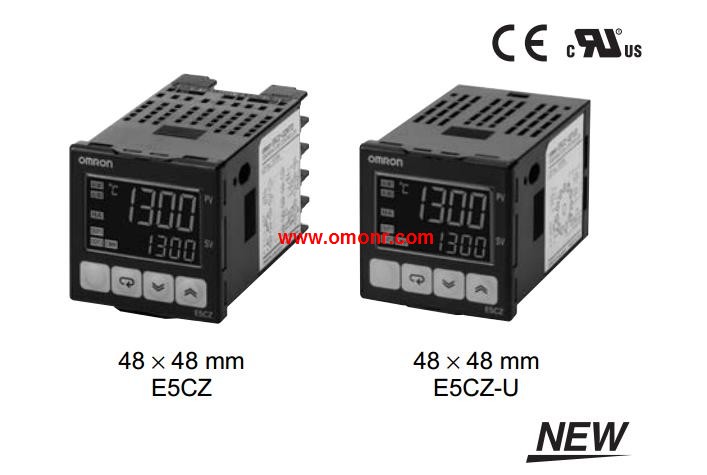

E5CZ-Q2TDU Digital Temperature Controllers
OMRON E5CZ-Q2TDU Manual And Instructions
E5CZ-Q2TDU datasheetPDF datasheet
E5CZ-Q2TDU Communications Manual
OMRON E5CZ-Q2TDU Product information and technical parameters：
Brand: OMRON
Name: Digital Temperature Controllers
Model: E5CZ-Q2TDU
Size: 1/16 DIN.
Power supply voltage: 24 VAC/VDC.
Input type: Thermocouple or Resistance thermometer.
Alarm output: 2.
Control output: Voltage output (for driving SSR).
Previous mode: None.
This Best-selling General-purpose,
48×48-mm Temperature Controller,
Is Now Even Better.
Controllers now available with analog inputs.
Faster sampling at 250 ms.
Transfer output provided for easy output to recorders.
Models available with a loop break alarm (LBA) and,
heater short alarm (HS alarm).
Easy setting with 11-segment displays.
Setting protection indicator informs operator when,
protection is enabled.
Manual output provided.
New protocol called Modbus is installed in the models,
with communications.
USB-Serial conversion cable is available.
Note: Refer to Precautions on page 33.
