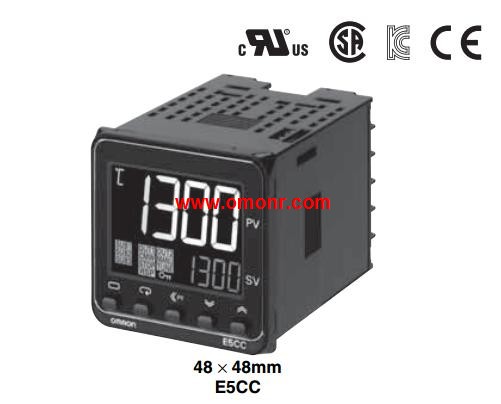

E5CC-QQ3ASM-007 Digital temperature controller
OMRON E5CC-QQ3ASM-007 Manual And Instructions
E5CC-QQ3ASM-007 RS-485 CompoWay/FINSTRUCTION MANUAL
E5CC-QQ3ASM-007 INSTRUCTION Manual
OMRON E5CC-QQ3ASM-007 Product information and technical parameters：
Brand: OMRON
Name: Digital temperature controller
Model: E5CC-QQ3ASM-007
Size: 48 x 48mm.
Control output 1: voltage output (SSR driver).
Control output 2: voltage output (SSR driver).
Auxiliary output: 3 points (common universal).
Power supply voltage: AC100 ~ 240V.
Terminal type: screw terminal table type.
Input category: full range multi input.
Heater break, SSR fault detection function: -.
Communication: -.
Event input: 2 points.
Remote SP input: there.
Transfer output: -.
Using large font PV display (white), improve visibility.
Selection, operation and setting.
Functional performance of input and output points.
Support for more extensive range of applications.
Using high PV 15.2mm display (white), improve visibility.
High speed sampling to achieve 50ms.
With auxiliary output (maximum 3 points), event input (maximum 4 points), the transmission output,
Remote SP input function, support for a variety of applications.
E5CC 60mm has a depth of slender body.
The use of communication adapter cable (sold separately) connected with a computer.
After that, no power supply connection can be set.
It can be easily set by CX-Thermo (sold separately).
Easy to connect with PLC through no program communication.
Combined temperature control device through component communication.
