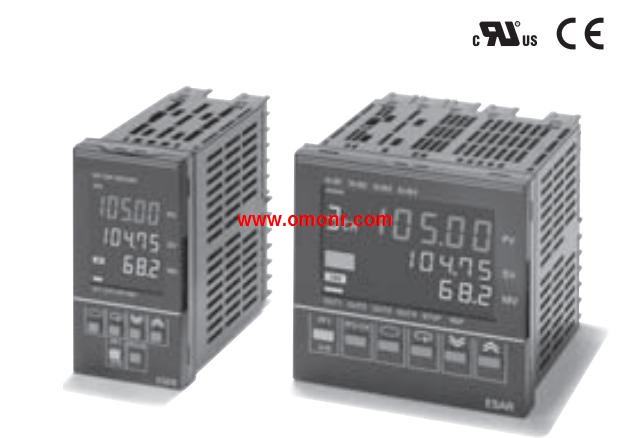

E5AR-TPR4DF Programmable Digital Controller
OMRON E5AR-TPR4DF Manual And Instructions
E5AR-TPR4DF datasheetPDF datasheet
E5AR-TPR4DF OPERATION MANUAL
E5AR-TPR4DF Communications Manual
E5AR-TPR4DF User's Manual
E5AR-TPR4DF INSTRUCTION Manual
OMRON E5AR-TPR4DF Product information and technical parameters：
Brand: OMRON
Name: Programmable Digital Controller
Model: E5AR-TPR4DF
Size: 96 × 96 mm.
Control type: Control valve control(1 loop).
Control mode: Single-loop position-proportional control.
Outputs(control/transfer): Relay outputs(1 open, 1 closed).
Optional functions: Auxiliary outputs (SUB), 4;
Event inputs, 4; Serial communications, None.
A new High-speed, High-precision Digital.
Controller that is Programmable!
Create up to 32 programs with up to 256 segments total.
Coordinated operation for up to four channels with one Digital Controller.
0.01°C High resolution for Pt input.
High-speed sampling at 50 ms.
Settings easily made from a computer using the CX-Thermo.
RoHS compliance for world-wide application.
