LK Automation Limited
Brand:
OMRON

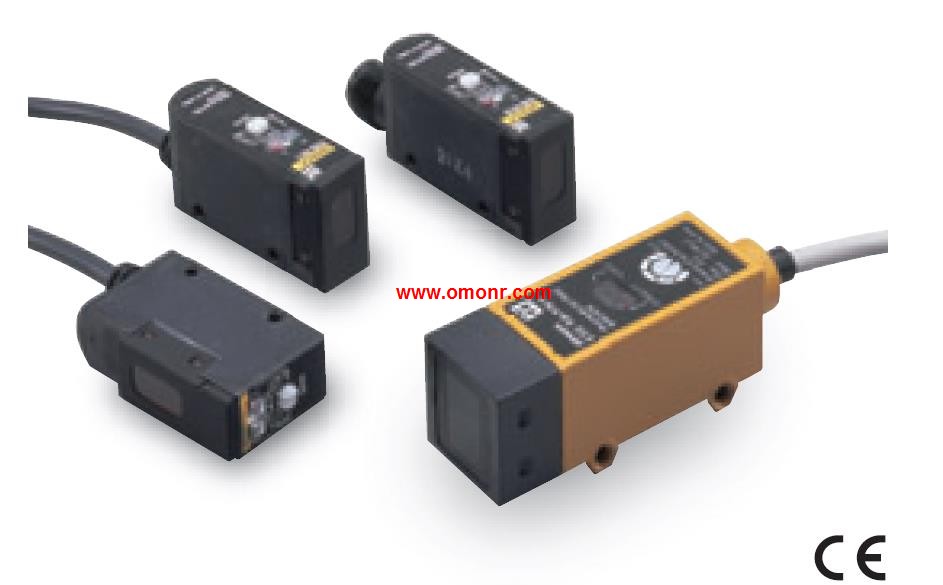

E3S-R81 Transparent Object Detection Sensor
OMRON E3S-R81 Manual And Instructions
E3S-R81 datasheetPDF datasheet
E3S-R81 INSTRUCTION sheet
OMRON E3S-R81 Product information and technical parameters：
Brand: OMRON
Name: Transparent Object Detection Sensor
Model: E3S-R81
Sensing method: Retro reflective.
Appearance: Vertical.
Connection method: Pre-wired (2 m).
Sensing distance: 1m [100 mm].
Model: PNP output.
Recommended application: Flat object,
Detecting glass wafers and LCD glass circuit boards, Ideal;
Cylindrical object,
Detecting plastic bottles and other transparent containers, --.
Ideal for Detecting Glass Wafers,
and Other Transparent Objects,
Detects glass wafers and LCD glass circuit boards.
...More relevant models >>>>
