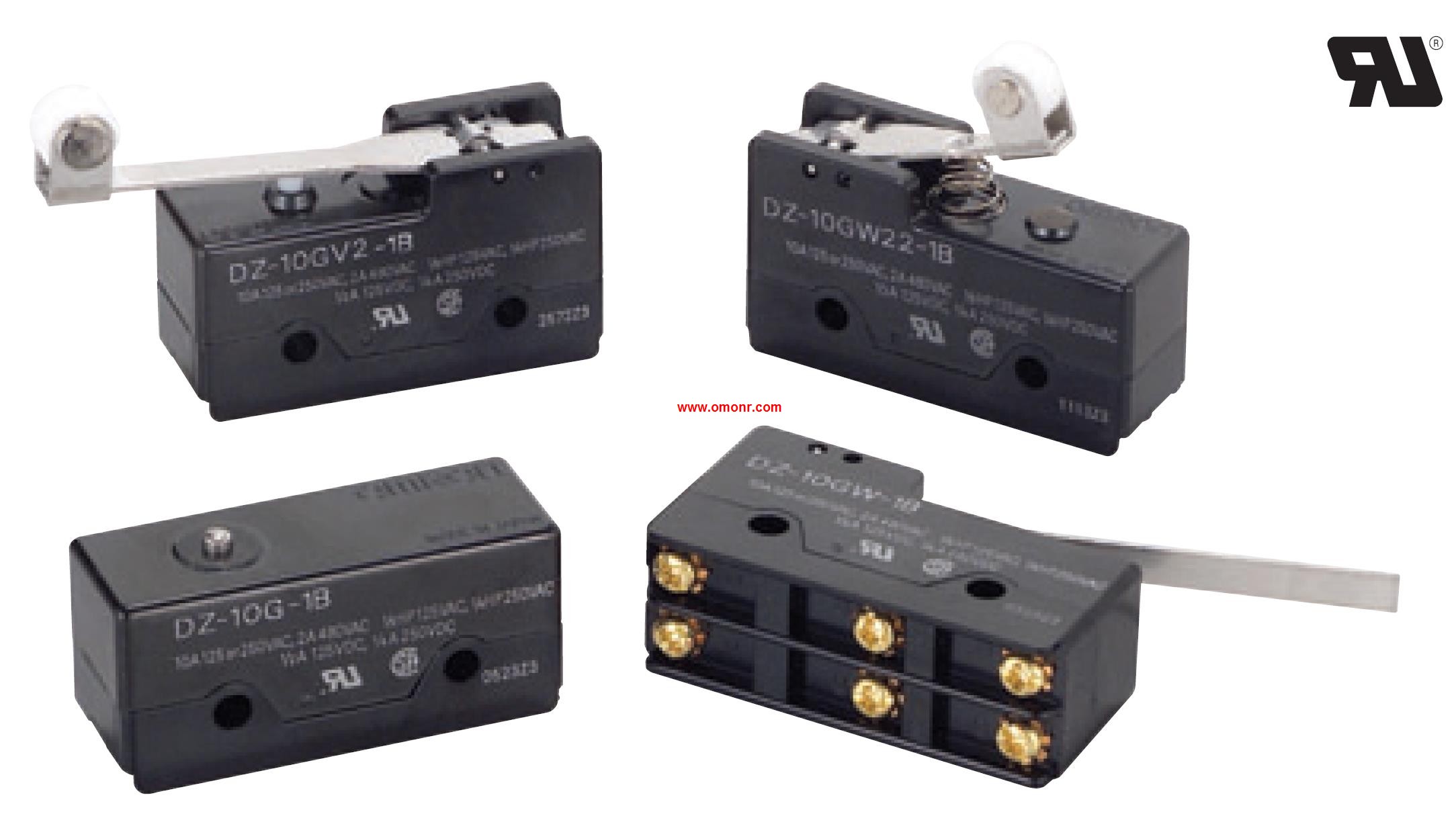

DZ-10G-1B Special-purpose Basic Switch
OMRON DZ-10G-1B Manual And Instructions
DZ-10G-1B datasheetPDF datasheet
OMRON DZ-10G-1B Product information and technical parameters：
Brand: OMRON
Name: Special-purpose Basic Switch
Model: DZ-10G-1B
Terminal: Screw terminal (-B).
Actuator: Pin plunger.
DPDT Basic Switch for Two.
Independent Circuit Control.
Ideal for switching the circuits operating on two,
different voltages, and for controlling two independent circuits.
Interchangeable with OMRON Z Basic Switches,
as both switches are identical in mounting hole,
dimensions, mounting pitch and pin plunger position.
