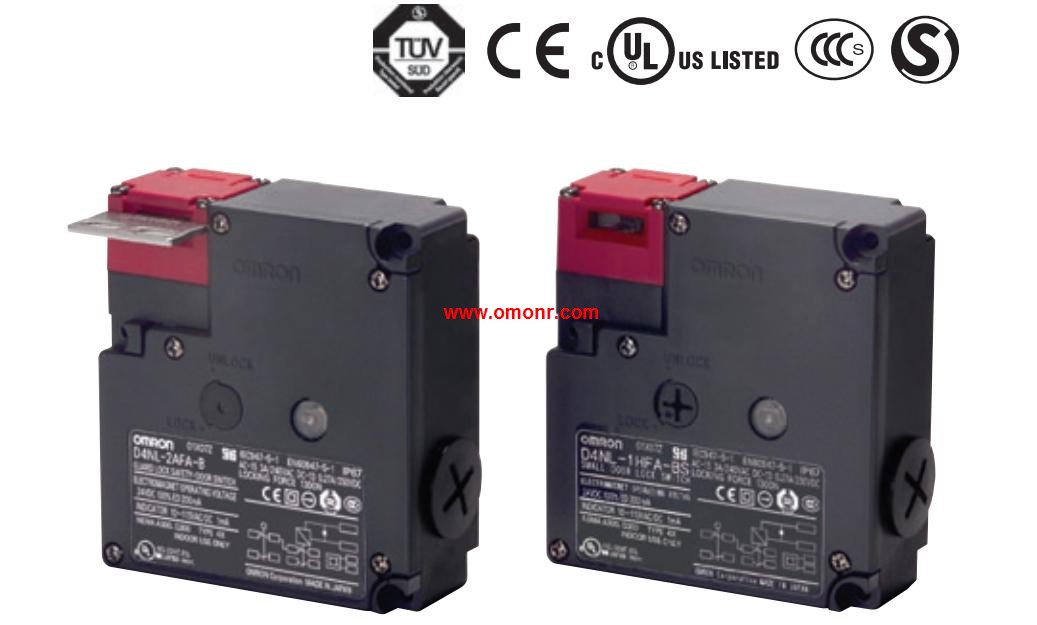

D4NL-1CFG-B Guard Lock Safety-door Switch
OMRON D4NL-1CFG-B Manual And Instructions
D4NL-1CFG-B datasheetPDF datasheet
D4NL-1CFG-B INSTRUCTION sheet
OMRON D4NL-1CFG-B Product information and technical parameters：
Brand: OMRON
Name: Guard Lock Safety-door Switch
Model: D4NL-1CFG-B
Head material: Plastic*1.
Release key position: Bottom.
Release key type: Standard (resin).
Solenoid voltage/indicator: Solenoid: 24 VDC, Orange LED: 10 to 115 VAC/VDC.
Lock and release types: Solenoid lock Mechanical release.
Contact configuration(door open/closed detection switch and,
lockmonitor switch contacts)(slow-action) Certified direct,
opening NC contact: 2NC+1NC/1NO.
Conduit opening: Pg13.5.
Best-selling Guard Lock Safety-door.
Switch Available in Several.
Compact, Multi-contact Models.
Selectable Operation Key insertion direction and,
adjustable mounting ensure installation flexibility.
Built-in switches with multiple-contact construction are available.
Key holding force of 1,300 N minimum.
Can be used for either standard loads or microloads.
Lineup includes models with a conduit size of M20.
IP67 degree of protection.
Variety of Metallic Heads Available.
