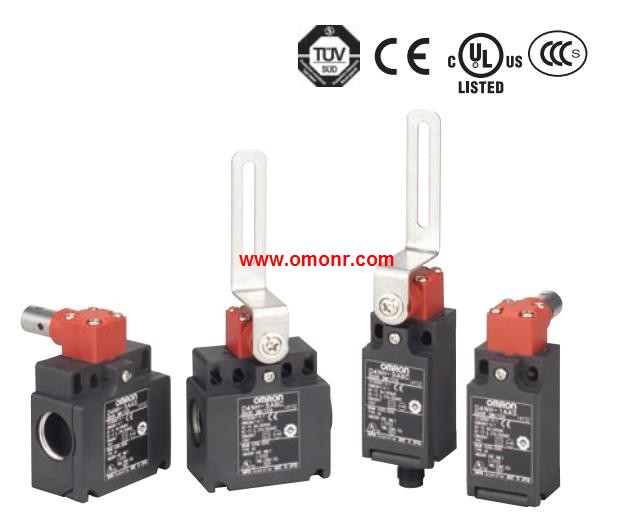

D4NH-6BBC Safety-door Hinge Switch
OMRON D4NH-6BBC Manual And Instructions
D4NH-6BBC datasheetPDF datasheet
D4NH-6BBC INSTRUCTION sheet
OMRON D4NH-6BBC Product information and technical parameters：
Brand: OMRON
Name: Safety-door Hinge Switch
Model: D4NH-6BBC
Actuator: Arm lever.
Conduit size: 2-conduit; G1/2.
Built-in switch mechanism: 2NC (Slow-action).
Compact, Plastic-body Safety-door.
Hinge Switch Designed for Saving.
Space in Machines and Other.
Equipment.
Lineup includes three contact models with 2NC/1NO and.
3NC contact forms in addition to the previous contact forms.
1NC/1NO, and 2NC. Models with MBB contacts are also available.
Standardized gold-clad contacts provide high contact reliability.
Can be used with both standard loads and microloads.
