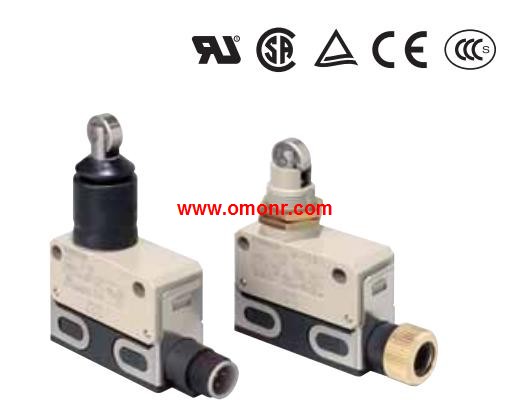

D4E-1H00N Small closed limit switch
OMRON D4E-1H00N Manual And Instructions
D4E-1H00N datasheetPDF datasheet
OMRON D4E-1H00N Product information and technical parameters：
Brand: OMRON
Name: Small closed limit switch
Model: D4E-1H00N
One touch type: connector type, general type.
Rated current; 5A AC125V.
Drive rod: one way action ball swing lever type.
Terminal: AC connector.
Action indicator: no operation indicator.
Compared with D4E performance is stronger, in compliance with the requirements of high durability, high sealing.
Horizontal spring, with improved swing lever ratio of the built-in switch to provide a smooth action effect and a longer period of use.
Protection cover protects built-in switch from dust and oil pollution damage.
The plunger type combined with the solid sealing cover has longer service life.
One touch off connector wiring operation miscellaneous,
And reduce the downtime due to wiring and maintenance.
Gold Plated minimum load type is an ideal choice for electronic control.
Can provide terminal type plastic screw terminal system and terminal type plastic with operation indicator.
Certified by EN, UL, CSA and CCC (China Standard) standard.
Install the pitch and with the characteristics of D4E- - N and D4E.
