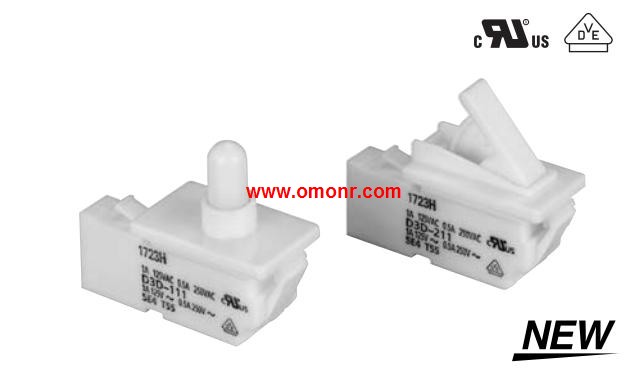

D3D-221 Miniature Door Switch
OMRON D3D-221 Manual And Instructions
D3D-221 datasheetPDF datasheet
OMRON D3D-221 Product information and technical parameters：
Brand: OMRON
Name: Miniature Door Switch
Model: D3D-221
Actuator: Lever.
Housing color: White.
Contact form: SPST-NC.
A Switch with Crimp-type.
Connectors Reduces.
Wiring Work. 9 mm long.
stroke (plunger model).
Choose from plunger or lever as the actuator type.
Crimp-type connector offers an easy wiring work and efficiency.
Snap-fit attachment for easy installation.
Providing long stroke with its unique mechanism.
Variety of color models available.
