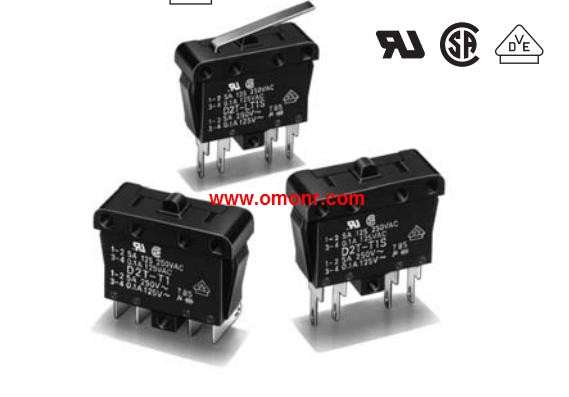

D2T-LT1 Miniature Power/Door Switch
OMRON D2T-LT1 Manual And Instructions
D2T-LT1 datasheetPDF datasheet
OMRON D2T-LT1 Product information and technical parameters：
Brand: OMRON
Name: Miniature Power/Door Switch
Model: D2T-LT1
Terminals: Right-angled.
Actuator: Hinge lever.
Door Switch Incorporated,
with Two Circuits for Power,
Loads and Micro Loads.
Compact size, with two separate circuits for power and signals.
Panel- or screw-mounted with ease.
