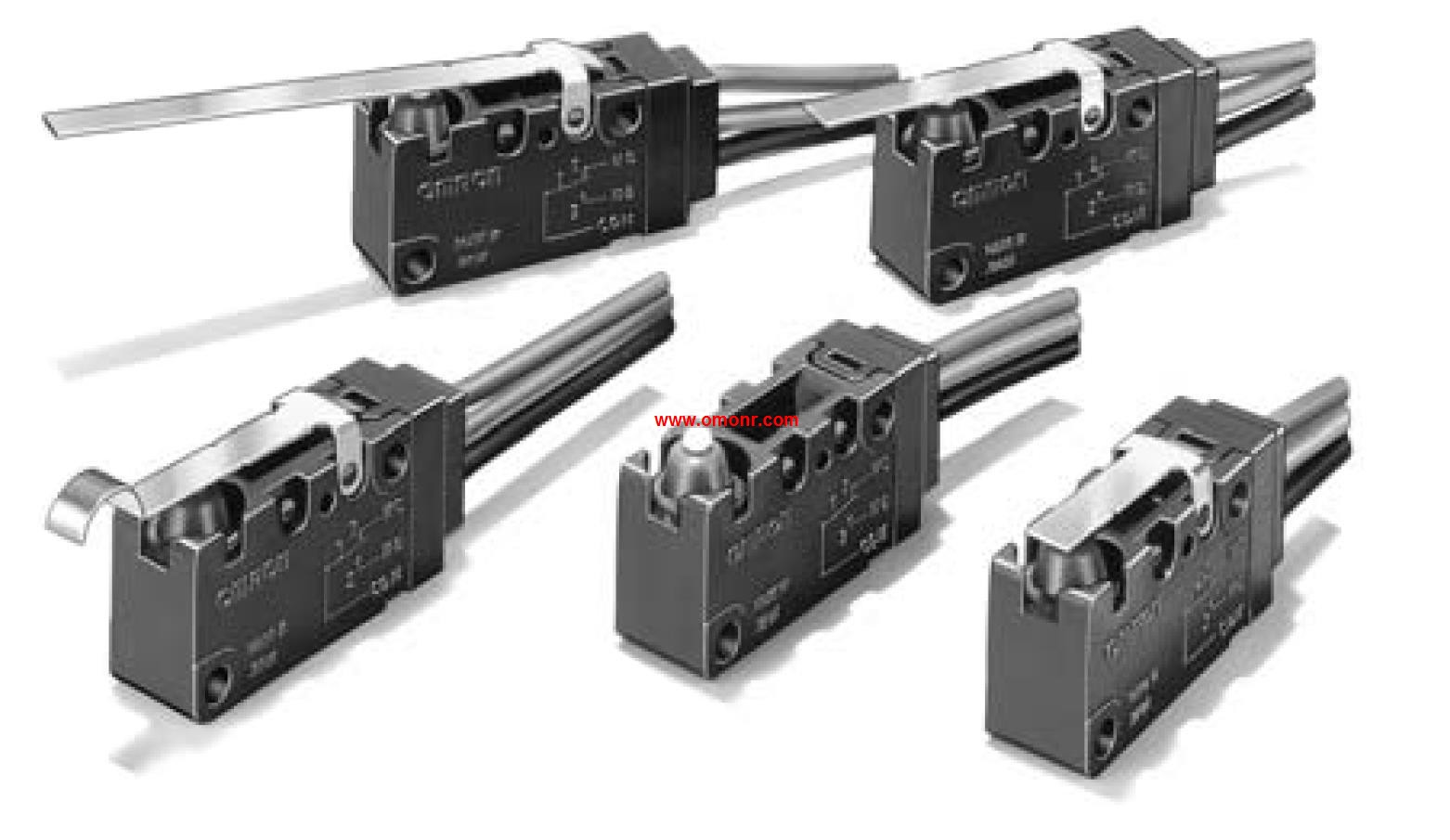

D2SW-01D Sealed Subminiature Basic Switch
OMRON D2SW-01D Manual And Instructions
D2SW-01D datasheetPDF datasheet
OMRON D2SW-01D Product information and technical parameters：
Brand: OMRON
Name: Sealed Subminiature Basic Switch
Model: D2SW-01D
Ratings: 0.1 A.
Actuator: Pin plunger.
Terminals: PCB terminals.
Contact form: SPDT.
Sealed Subminiature Basic.
Switch Conforming to IP67.
(Excluding the terminals on terminal models).
Use of epoxy resin assures stable sealing,
making this switch ideal for places subject to,
water spray or excessive dust.
Ideal for automobiles, automatic vending,
machines, refrigerators, ice-making equipment,
bath equipment, hot-water supply systems, air,
conditioners, and industrial equipments, which,
require high environmental resistance.
Models available with UL, CSA, and VDE safety,
standard compliance.
