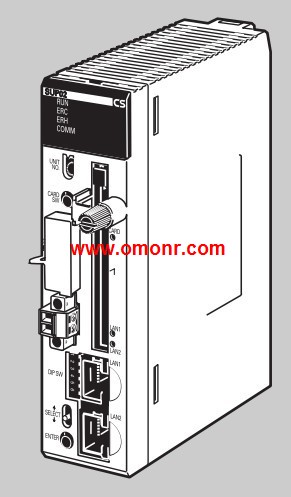

CS1W-SPU02-V2 High-speed Data Storage Unit
OMRON CS1W-SPU02-V2 Manual And Instructions
CS1W-SPU02-V2 datasheetPDF datasheet
CS1W-SPU02-V2 INSTRUCTION MANUAL
OMRON CS1W-SPU02-V2 Product information and technical parameters：
Brand: OMRON
Name: High-speed Data Storage Unit
Model: CS1W-SPU02-V2
Unit type: CS1 CPU Bus Unit.
Product name:SPU Unit,
(High-speed Data Storage Unit).
Specifications: PC Card slot,
1 PC Card Type II slot Insert an,
OMRON HMC-EF@@@ to use the Memory Card;
Ethernet (LAN) port, 2 port(10/100BASE-TX).
No. of unit numbers allocated: 1.
Current consumption: 5V, 0.70A; 26V, --.
Standards: UC1, CE.
High-speed Collection of System Data.
The CPU Unit can collect large amounts,
of process data, operation data,
inspection data, and other controlled system,
data quickly and automatically save the data,
in external storage media as CSV files.
