4 Axis Position Control and Comprehensive Programmable Controller.
The CP1H-X with pulse outputs for 4 axes.
The CP1H-Y with 1-MHz pulse I/O.
The CP1H-XA with pulse outputs for 4 axes and built-in analog I/O. Output method: Transistor sinking.
Inputs: 24.
Outputs: 16.Model: CPM2C-24EDT1M. Units with 24 I/O points

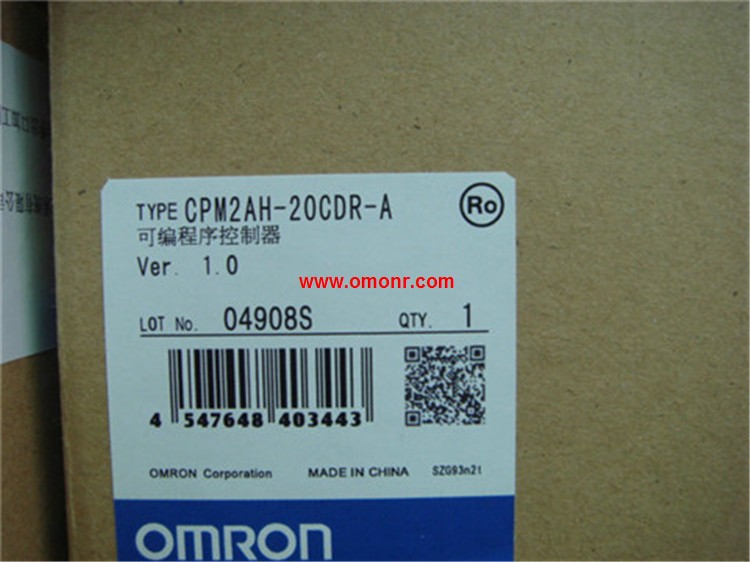

2 MIL connectors CPM2AH-20CDR-A.
Inputs: 16 inputs.
Outputs: 8 outputs.
Input type: 24 VDC CPM2AH-20CDR-A
Output type: sourcing transistor.Product name: N@@S1- type CPU Units with 60 I/O Points.
Specifications: Power Supply, DC24V; Inputs, 36; Outputs, 24;
Output type: Transistor (sinking).
Program capacity: 8K steps.
memory Data capacity: 8K words.
External powersupply(24 VDC): --.
Current consumption: 5 V, 0 CPM2AH-20CDR-A. 31A; 24 V，0.02A.
Standards: CE.
The CP1E Programmable Controller: Economical, Easy to use, and Efficient.
The E@@(S)-type Basic CPU Units provide cost,
performance and easy application with only basic functionality.
The N@@(S@) and NA-types Application CPU Units,
support Programmable Terminal connection, position control,
and inverter connection. Model: CPM2C-10C1DT1C-D. CPU Unit: Units with 10 I/O points CPM2AH-20CDR-A.
2 Fujitsu connectors.
Inputs: 6 inputs.
Outputs: 4 outputs.
Input type: 24 VDC.
Output type: sourcing transistor.
Internal clock: Yes.Model: CPM2A-40CDT1-D. Power supply: DC power supply.
Output type: Transistor sourcing.
Inputs points: 24 points.
Outputs points: 16 points.Power supply: DC power supply.
Output method: Relay output.
Inputs points: 12 points.
Outputs points: 8 points.CPU Unit: CP1L-M CPU Units with 30 Points.
Specifications: CPU type, Memory capacity: 10K steps
High-speed counters: 100 kHz, 4 axes Pulse outputs:
100 kHz, 2 axes (Models with transistor outputs only);
Power supply, DC power suupply; Output method, Relay output;
Inputs, 18; Output, 12 CPM2AH-20CDR-A.
Standards: UC1, N, L, CE.
High Performing Programmable Controller with Embedded Ethernet.
"CP1L-EM" and "CP1L-EL" has a standard-feature Ethernet port.
"CP1L-M" and "CCP1L-L" has a standard-feature peripheral USB port CPM2AH-20CDR-A.
Function blocks (FB) allow you to build up modular structure and,
programming of ladder diagrams.
