LK Automation Limited
Brand:
OMRON

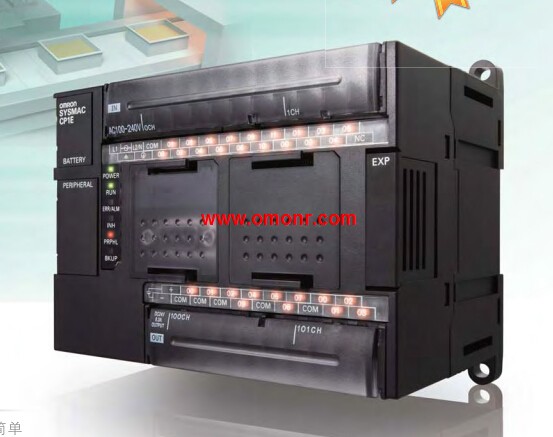

CP1E-N60DT1-A CP1E CPU Units
OMRON CP1E-N60DT1-A Manual And Instructions
CP1E-N60DT1-A datasheetPDF datasheet
CP1E-N60DT1-A datasheetPDF datasheet
CP1E-N60DT1-A Installation Guide
CP1E-N60DT1-A SoftwarePROGRAMMING MANUAL
CP1E-N60DT1-A HardwarePROGRAMMING MANUAL
CP1E-N60DT1-A REFERENCE MANUAL
CP1E-N60DT1-A Communications CommandsUSER'S MANUAL
OMRON CP1E-N60DT1-A Product information and technical parameters：
Brand: OMRON
Name: CP1E CPU Units
Model: CP1E-N60DT1-A
Product name: N@@-type CPU Units with 60 I/O Points.
Specifications: Power Supply, 100 to 240 VAC; Inputs, 36; Outputs, 24;
Output type: Transistor (sourcing).
Program capacity: 8K steps.
memory Data capacity: 8K words.
External powersupply(24 VDC): 0.30A.
Current consumption: 5 V, 0.31A; 24 V，0.02A.
Standards: UC1, N, L, CE.
The CP1E Programmable Controller: Economical, Easy to use, and Efficient.
The E@@(S)-type Basic CPU Units provide cost,
performance and easy application with only basic functionality.
The N@@(S@) and NA-types Application CPU Units,
support Programmable Terminal connection, position control,
and inverter connection.
...More relevant models >>>>
