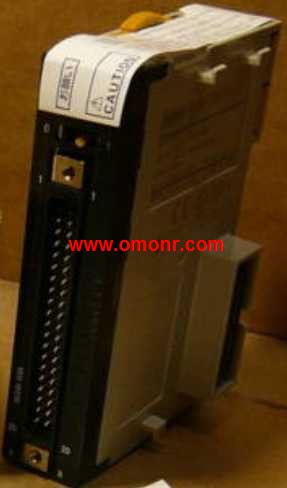

CJ1W-OD231 Output Units
OMRON CJ1W-OD231 Manual And Instructions
CJ1W-OD231 datasheetPDF datasheet
CJ1W-OD231 HardwareOPERATION MANUAL
OMRON CJ1W-OD231 Product information and technical parameters：
Brand: OMRON
Name: Output Units
Model: CJ1W-OD231
Unit type: CJ1 Basic I/O Units.
Product name: Transistor Output Units.
Specifications: Output type, Sinking;
I/O points, 32 outputs;
Maximum switching capacity, 12 to 24VDC, 0.5A;
Commons, 16 points, 1 common;
External connection, Fujitsu connector.
No. of words allocated: 2 words.
Current consumption: 5V, 0.14A; 24V, --.
Standards: UC1, N, L, CE.
A Wide Range of Basic Output,
Units for High Speed Output,
and Different Applications.
These Output Units receive the ,
results of output instructions ,
from the CPU Unit and perform ON/OFF,
control for external devices.
High-speed Output models CJ1W-OD213 and,
CJ1W-OD234 can help to increase system.
throughput.
...More relevant models >>>>
