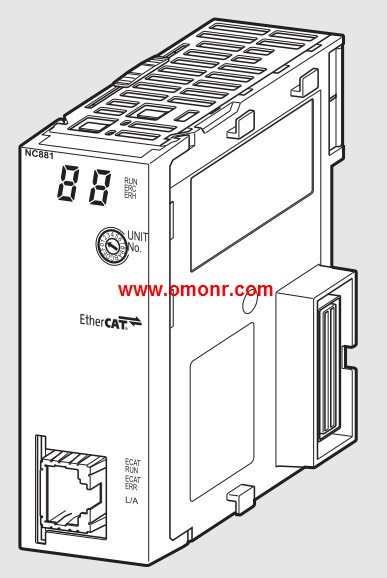

CJ1W-NCF81 Position Control Units with EtherCAT interface
OMRON CJ1W-NCF81 Manual And Instructions
CJ1W-NCF81 datasheetPDF datasheet
CJ1W-NCF81 PROGRAMMING MANUAL
CJ1W-NCF81 safety precautions
OMRON CJ1W-NCF81 Product information and technical parameters：
Brand: OMRON
Name: Position Control Units with EtherCAT interface
Model: CJ1W-NCF81
Unit type: CJ1 CPU Bus Units.
Product Name: Position Control,
Units with EtherCAT interface.
Specifications: Control output interface,
Control commands executed by,
EtherCAT communications.
Positioning functions: Memory operation,
Direct operation by ladder programming;
No. of axes: 16 axes.
No. of unit numbers allocated: 1.
Current consumption : 5V, 0.46A; 24V,--.
Standards: UC1, CE.
Preeminent control performance and,
easy operation feature of EtherCAT,
improve the production efficiency.
The EtherCAT communications with,
100Mbps baud rate enables fast,
and accurate position control.
A wide range of position control,
functions are available with,
this position control unit.
