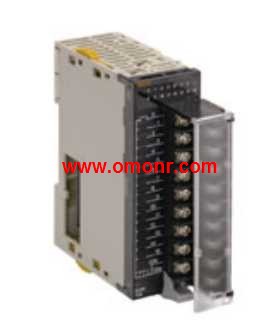

CJ1W-INT01 Interrupt Input Units
OMRON CJ1W-INT01 Manual And Instructions
CJ1W-INT01 datasheetPDF datasheet
CJ1W-INT01 HardwarePROGRAMMING MANUAL

OMRON CJ1W-INT01 Product information and technical parameters:
Brand: OMRON
Name: Interrupt Input Units
Model: CJ1W-INT01
Unit type: CJ1 Basic I/O Units.
Product name: Interrupt Input Unit.
Specifications: I/O points, 16 inputs;
Input voltage current, 24 VDC, 7mA;
Commons: 16 points, 1 common;
Input pulse widt conditions, ON time:
0.05 ms max. OFF time: 0.5 ms max;
Max. Units mountable per Unit, 2;
External connection, Removable terminal block.
No. of words allocated: 1 word.
Current consumption: 5V, 0.08A; 24V, --.
Standards: UC1, N, L, CE.
High-speed Starting of I/O InterruptTasks.
Use Up to Two Units for a Total of Up,
to 32 Interrupt Inputs.
Receive inputs to start I/O interrupt tasks.
When the Interrupt Input Unit receives an input,
the CPU Unit will interrupt execution of the,
cyclic tasks in the normal.
program and execute an I/O interrupt task.

Unit type: CJ1 Basic I/O Units.
Product name: AC Input Units.
Specifications: I/O points, 16 inputs;
Input voltage and current: 100 to 120 VAC, 7 mA(100 V, 50 Hz);
Commons, 16 points, 1 common; External connection,
Removable Terminal Block; No. of words allocated, 1 word.
Current consumption: 5V, 0 CJ1W-INT01. 09A; 24V, --.
Standards: UC1, N, L, CE.
A Wide Range of Basic Input,
Units for High Speed Input and,
Different Applications CJ1W-INT01
Receive ON/OFF signals from external,
devices into the PLC System to update,
I/O memory in the CPU Unit.
New high-speed input models CJ1W-ID212 and,
CJ1W-ID233 are now available. These units can,
help to increase system throughput.
I/O capacity/Mountable Units(Expansion Racks): 960 points/30 Units (2 Expansion Racks max CJ1W-INT01. ).
CJ1G-CPU42H OMRON Program capacity: 10K steps.
OMRON CPU42H Data memory capacity: 64K words(DM: 32K words, EM: 32K words × 1 bank).
LD instructionUnit type: CJ1 CPU Bus Units.
Product Name: Position Control,
Unit with MECHATROLINK-II interface.
Specifications: Control commands,
executed by MECHATROLINK-II,
synchronous communications CJ1W-INT01.
Direct operation by ladder programming.
Control mode: Position control,
speed control or torque control;
No. of axes: 16 axes.
No. of unit numbers allocated: 1.
Current consumption : 5V, 0.36A; 24V,--.
Standards: UC1, CE.
Decrease TCO with Simple Operation,
Reduced Wiring, Batch Settings,
and Batch Management.
Control Servos for up to 16 axes in,
a motion network with one Position,
Control Unit that supports MECHATROLINK-II.
MECHATROLINK-II is a registered trademark,
of the MECHATROLINK Members Association. Unit classification: CJ1 Special I/O Units.
Product name: Position Control Units,
(High Speed type).
Specifications; Control method/Control,
output interface: Pulse-train open-collector,
output with Pulse Counter Function;
Number of control axes : 4 axes.
No. of unit numbers allocated: 2.
Current consumption: 5V, 0.31A; 24V, --.
Standards: UC1, CE.
Motion Control Capabilities with Unit,
Synchhronization and Even Higher Speed CJ1W-INT01.
Models are available with 2 or 4 axes,
and open-collector or line-driver outputs.
The CJ1W-NC214/NC414 have open-collector outputs,
and the CJ1W-NC234/NC434 have line-driver outputs.
Control 2 or 4 Axes High-speed, high-resolution,
position control is possible for servomotors ,
and pulse motors, and even linear motors,
and direct drive motors CJ1W-INT01.
